CHANGLIN GE330D Earthmoving Machinery Crawler Excavator
Model:
GE330D
View All >
Category:
Earthmoving Machinery
Product:
Crawler Excavator
Brand Name:
CHANGLIN
Dimension (mm):
10700*3280*3546
Operating weight (kg):
31380kg
Origin:
China
Key Attributes
Bucket Capacity:
1.6m3
Max. Digging Height:
9617mm
Max. Digging Depth:
6536 mm
Engine Brand:
cummins
Engine Power:
241kW
Digging Force:
182 KN
Length of chassis:
4950mm
Track shoe gauge:
2680mm
Width of chassis:
3280mm
Wheel base of track shoe:
4030mm
Packaging & Shipping
Overall Dimensions (L×W×H):
10700*3280*3546
Overall Weight:
31380kg
Shipping Method:
BULK/RORO/40FR
Delivery Period:
20 working days
Certificate:
ISO
Origin:
China
HS Code :
8429521290
Detailed Specifications


33 Ton Crawler Excavator GE330D

Cummins engine (conforming to Ⅱ-stage emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.

Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases; large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect

Aiming at the extremely harsh mining operation conditions, the heavy-duty reinforced boom, the mine-specific short stick and the large-capacity rock bucket are standard, and the extended and widened heavy-duty chassis is standard.

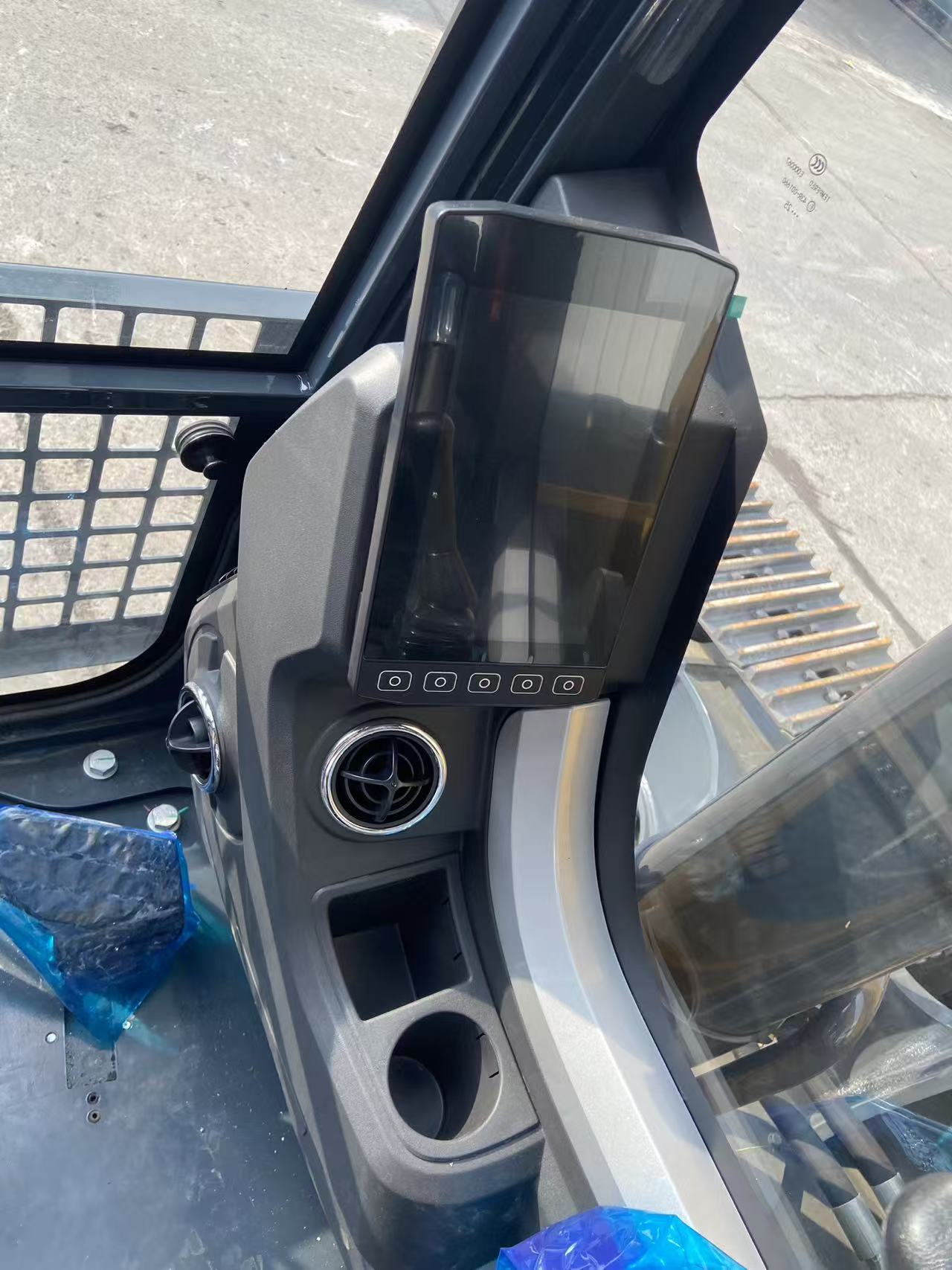

Equipped with high-resolution, high-brightness 8-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions;

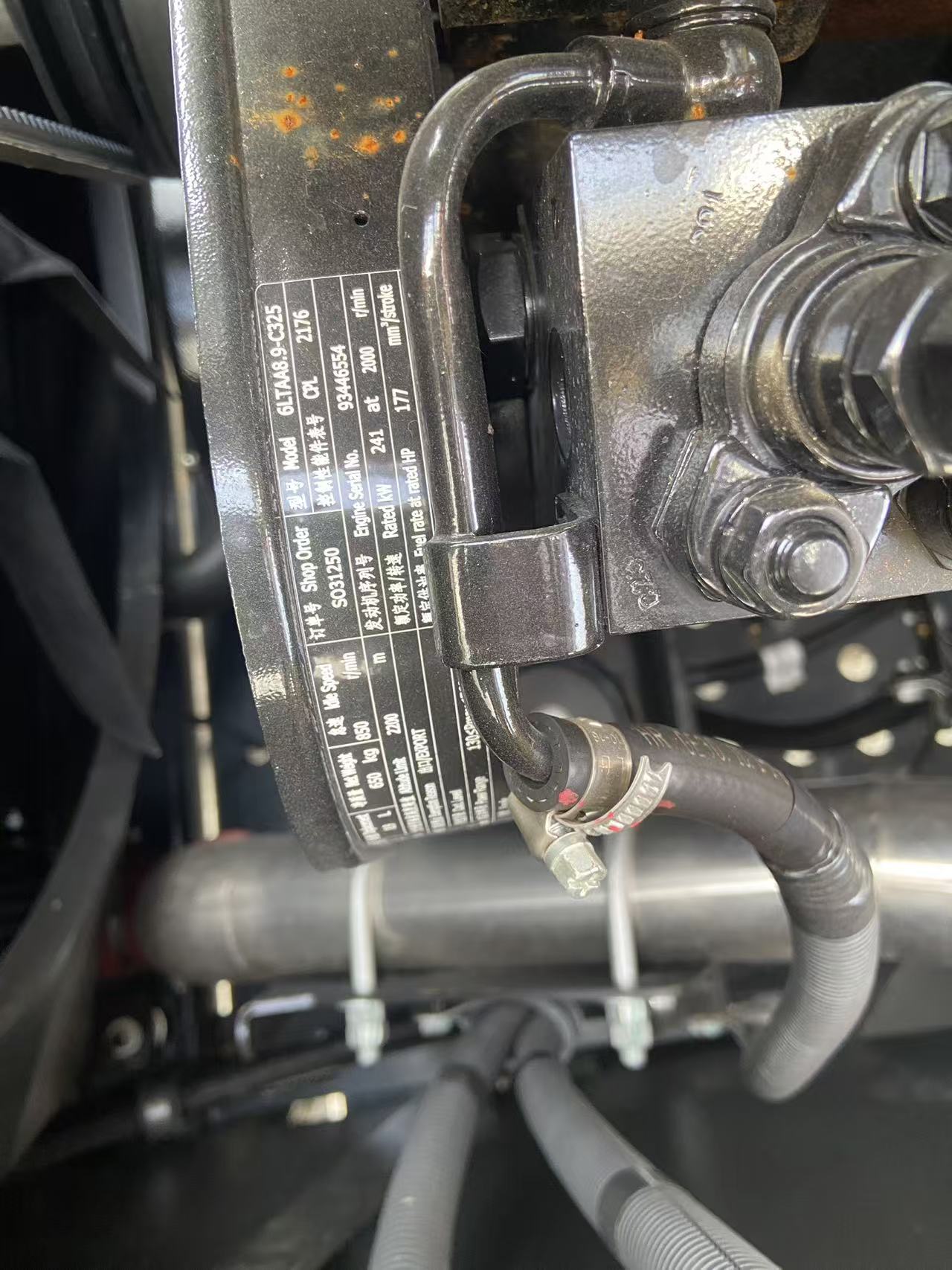

Type4 Stroke,6 Cylinder in line ,direct injection, turbocharged
Min. ground clearancemm471
Main pumpK5V140DT
Main valveKAWASAKI
Slewing motorKAWASAKI
M5X180CHB
Travelling motorDoosan
Track xcmg
Turning radius of turntablemm3250
Wheel base of track shoemm4030
Standard track widthmm600
Ground pressureKgf/cm20.594
Bucket digging forceKn225
EmissionStage 2
Cooling typeWater cooled
Bore diameter × strokemm114×145
DisplacementL8.9
Rated powerkW/rpm241/2000
Max. touqueNm/rpm1400/1400
Rated diesel consumptiong/KW.h(rpm)217(2000)
Starter24V 8.5KW
GeneratorJFZ2725-010(28V-70A)
Battery2×12V×120Ah

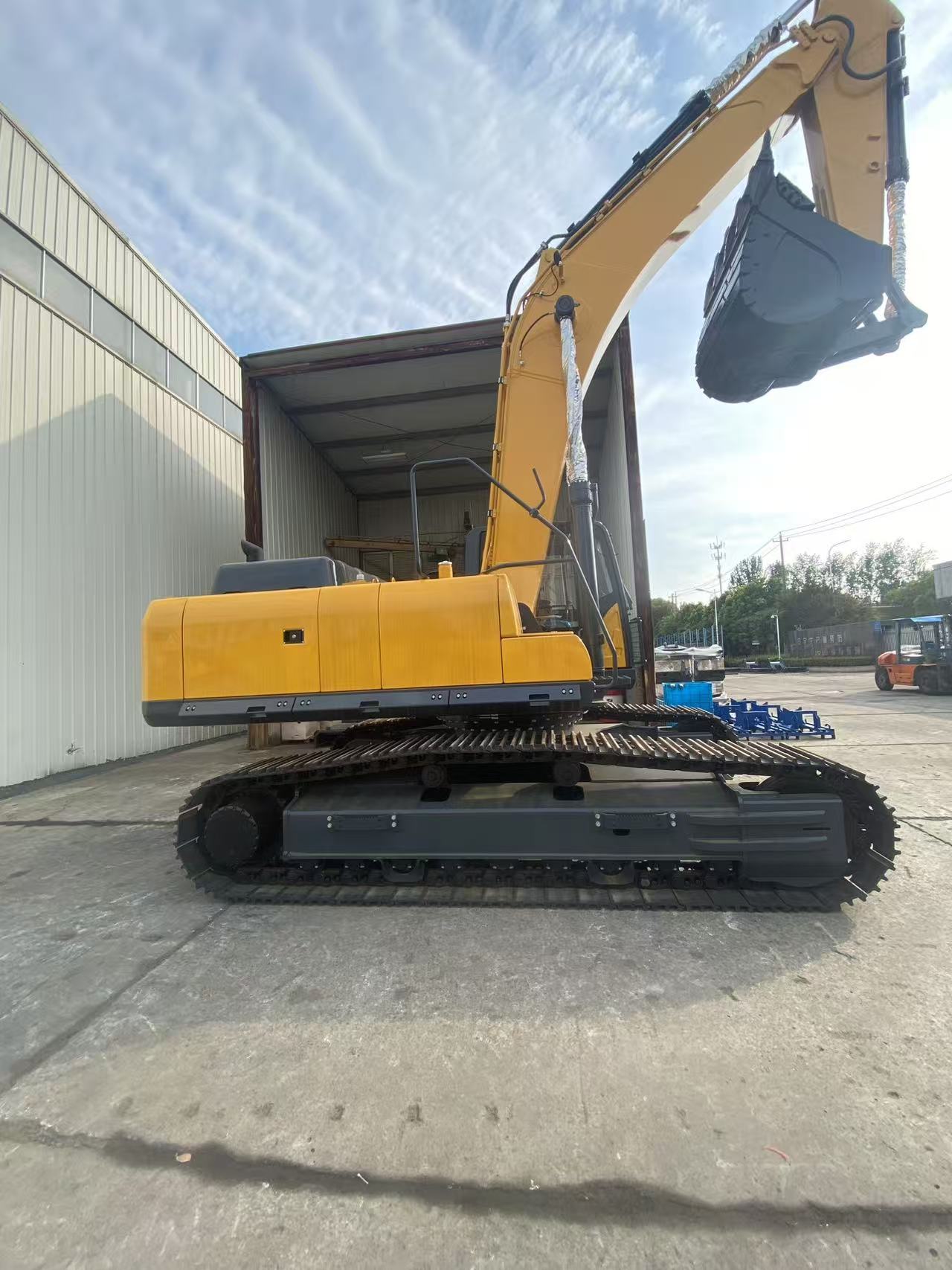

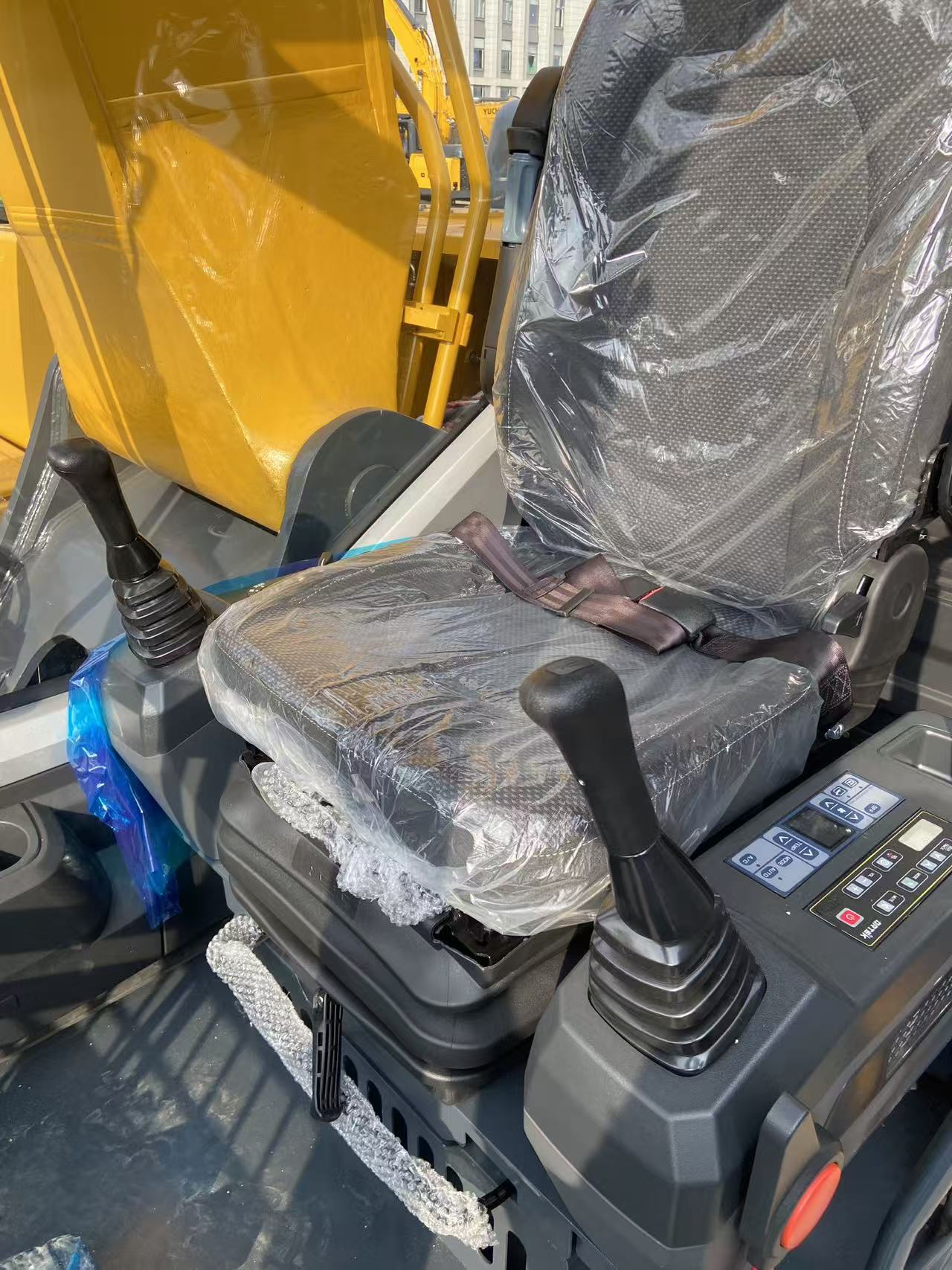

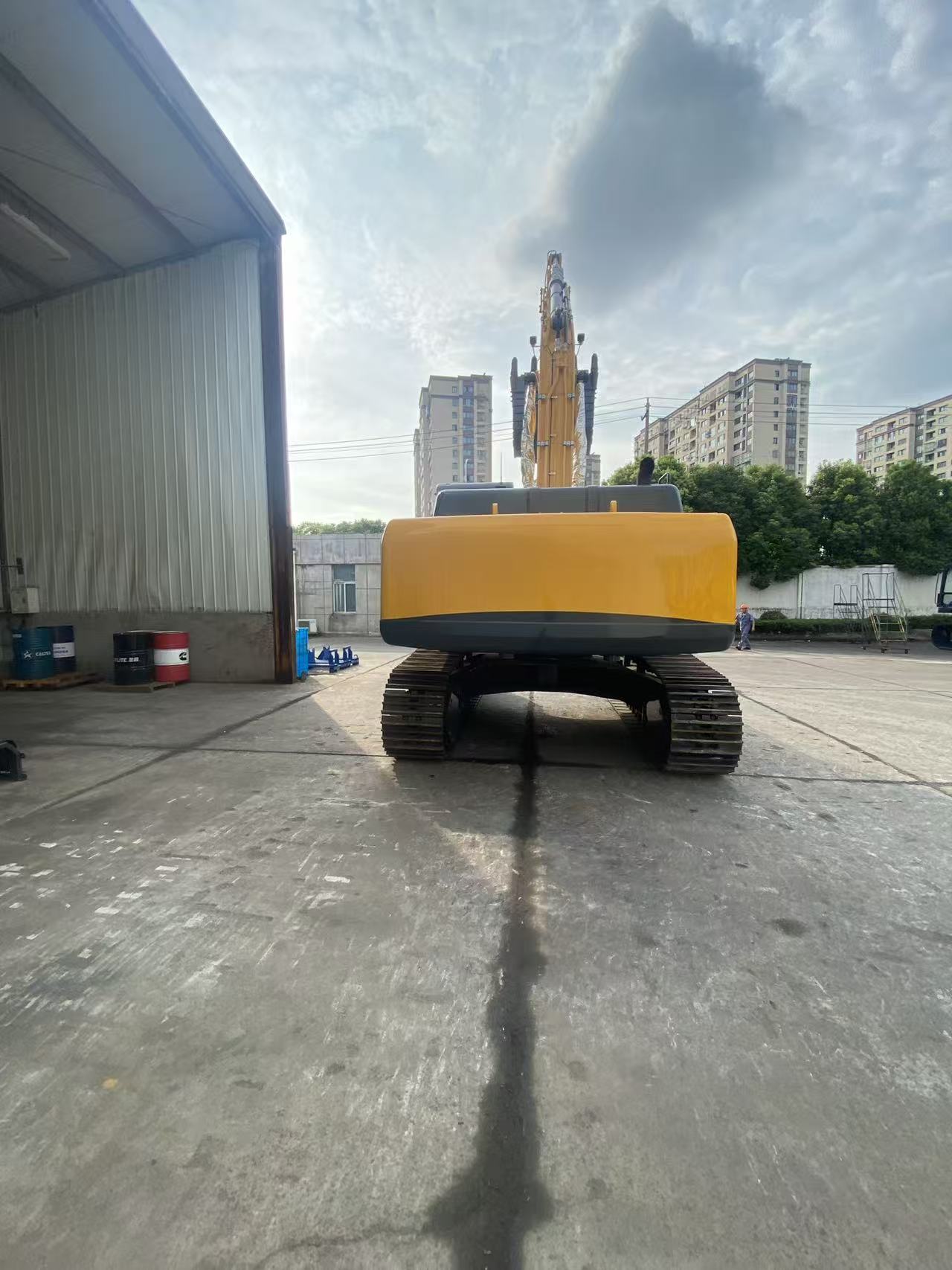

3d0fc5650e9b216b236dfa8148d725fd.jpg4e0a242bc0367ce8a3b6a5bccaca2ec1.jpgcbaad293ef88ef815ca9b76206cf121a.jpgcbda231805f3cd0542d0e18792c2521c.jpgfe455108406fecddca3956d8d7c9a947.jpg










Company Profile
packing & shipping
40'HQ Container
RoRo Shipment
Flat Rack Container
Bulk Shipment
Road Transportation
Railway Transportation
our advantages

Professional Team
Rich Experience

Stable and Strong
Supports From Factory

Powerful One-Stop
Service Ability

Over 100+ Top
Brands to Choose

24 Hours Online
Quick Response

Guaranteed
Quality

Good Company
Reputation

Competitive
Price

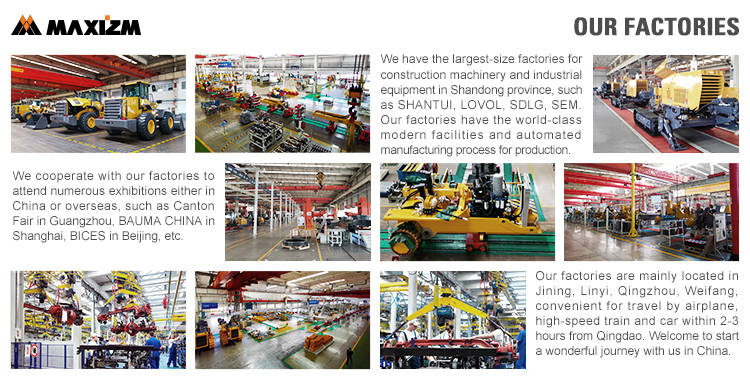

Our Factories
Our Factories
We have the largest-size factories for construction machinery and industrial equipment in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production.
We cooperate with our factories toattend numerous exhibitions either in China or overseas, such as Canton Fair in Guangzhou,BAUMA CHINA in Shanghai, BICES in Beijing, etc.
Our factories are mainly located inJiangsu、Hunan、Shandong、Henan, Hebei provinces, convenient for travel by airplane,high-speed train and car within 2-3 hours from Shanghai. Welcome to start a wonderful journey with us in China.
Our Mission:
Strive to Contribute Value to Global Infrastructure by Exporting Quality Chinese Construction Machinery All Over the World
Our Vision:
To be the Most Influential One-Stop Construction Machinery Supplier in the World
Our Values:
Integrity、Passion、Diligence、Efficiency、Professionalism、Win-Win
  • ISO9001 Certificate

  • CTC Certificate

  • CNAB Certificate

  • CCC Certificate

  • CE Certificate

  • ISO9001 Certificate

AFTER-SALES SERVICE
Warranty

SUPEREGN grants our clients a twelve-month-period (1 Year) or 2000-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge as compensation, at our discretion.

Spare Parts

We are deeply committed to providing our clients with authentic, top-tier spare parts. We understand that the quality and precision of each part significantly contribute to the overall performance, functionality, and lifespan of your machine. That's why we assure you that our spare parts have undergone rigorous testing for quality and fit, to ensure they work seamlessly with your equipment.

Training

We are proud to offer an array of comprehensive training services, designed and customized to meet the unique needs of our diverse clientele. Our training sessions encompass a wide range of topics, including:

Installation & Maintenance

SUPEREGN is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the proper operation of construction machine. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation. We can also send engineers to client's site to do maintenance work.

Transactions with 200 Countries Worldwide
COMPANY OVERVIEW
Located in Shanghai, China
2900m² Office Space
+86-21-6277-0109
sales@superegn.comwww.superegn.com
Suite 2103, Gubei International Fortune Center, No. 1438 Hongqiao Road, Changning District, 200336 Shanghai, China

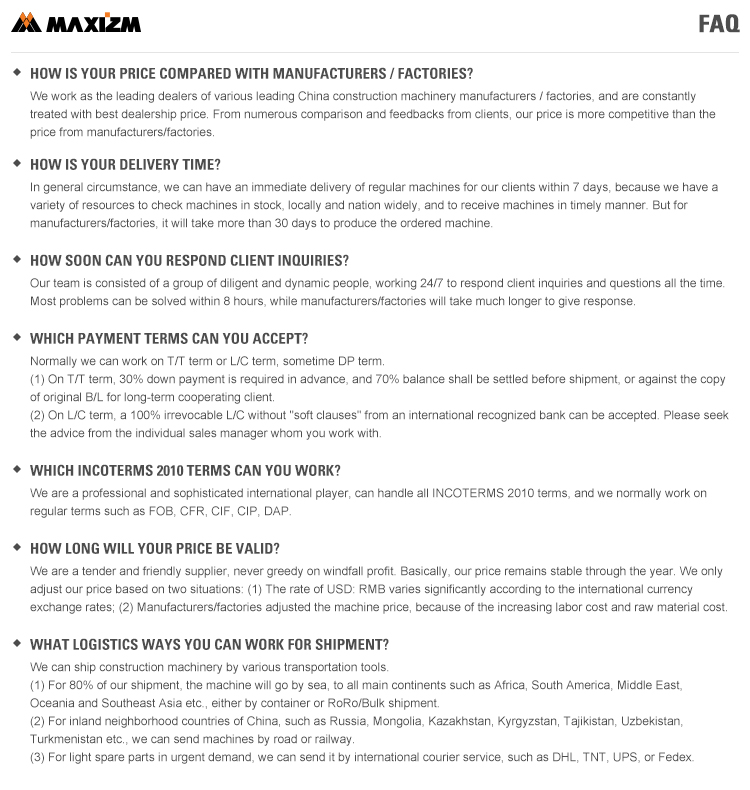

FAQ
