HOWO ZZ3317V386JB1 Truck & Special Vehicle Dump Truck
Model:
ZZ3317V386JB1
View All >
Category:
Truck & Special Vehicle
Product:
Dump Truck
Brand Name:
HOWO
Dimension (mm):
10400*2550*3450 mm
Operating weight (kg):
18000 kg
Origin:
CHINA
Key Attributes
Rated Load Capacity:
13000 kg
Engine Brand:
WEICHAI
Dump Body Volume:
26.22 m³
Engine Power:
380 HP
Emission Standard:
Euro II
Dump Body Dimensions:
7600*2300*1500 mm
Transmission:
HW19710 + HW50 PTO (10 forwards & 2 reverses)
Front Axle:
2*VGD95 (9.5 Tons)
Driving Axle:
2*MCP16ZG (16 Tons)
Drive Type:
8*4
Engine Model:
WP10.380E22
Fuel Tank Capacity:
400 L
Dump Body Bottom Thickness:
8 mm
Dump Body Side Thickness:
6 mm
Tipping Type:
Front lifting
Tarpaulin:
Electric tarpaulin
Packaging & Shipping
Overall Dimensions (L×W×H):
10400*2550*3450 mm
Overall Weight:
18000 kg
Shipping Method:
By bulk
Delivery Period:
40-45 working days
Color:
White, red, black
Origin:
CHINA
HS Code :
8704230090
Detailed Specifications

Sinotruk HOWO NX 380HP 8X4 Dump Truck with Tarp: Powerhouse for Secure Material Hauling

This truck is a high-performance solution engineered for demanding bulk material transport, featuring a robust 8X4 chassis and an automated tarp system for enhanced load protection and operational efficiency.

This truck combines ‌heavy-duty engineering‌ with operational versatility‌, making it a strategic investment for industries prioritizing durability and productivity. The automated tarp system minimizes material loss and environmental impact, while the 8X4 configuration ensures traction on uneven surfaces, ensuring uninterrupted workflow.


Applications

  • Construction Sites‌: Ideal for transporting and dumping aggregates, soil, or demolition waste.
  • Mining Operations‌: Suited for ore extraction and material handling in remote or challenging locations.
  • Logistics & Agriculture‌: Efficiently moves large volumes of agricultural produce or industrial materials while maintaining load security.


Main Specifications

  • Model: ZZ3317V386JB1
  • Engine: WEICHAI, WP10.380E22
  • Horse Power: 430HP
  • Transmission: HW19710 + HW50PTO
  • Tank volume: 400L


Product Parameters

Sinotruk Howo NX 380HP 8X4 Dump Truck With Tarp
ModelZZ3317V386JB1
CabinH77L extended cabin with one berth (sleeper), with Air-conditioner (A/C), up/down and front/back adjustable steering wheel, satety belt, high steel bumper, exterior sun visor etc.
EngineWEICHAI, WP10.380E22, 380HP, Euro II
TransmissionHW19710 + HW50PTO, 10 forwarder & 2 reserve, manual.
SteeringPower steering with hydraulic system.
Front axleHeavy duty axle, 9500kgX2, drum type.
Rear axleHeavy duty axle, 16000kgX2.
Tire12.00R20, steel radial tires, plus one spare tire (totally 11 units)Optional: 315/80R22.5, 12R22.5
Tank volume (L)400L
Dump box dimension (LxWxH)  7600x2300x1500mm, with cover
Overall dimension (LxWxH)10400x2550x3450mm

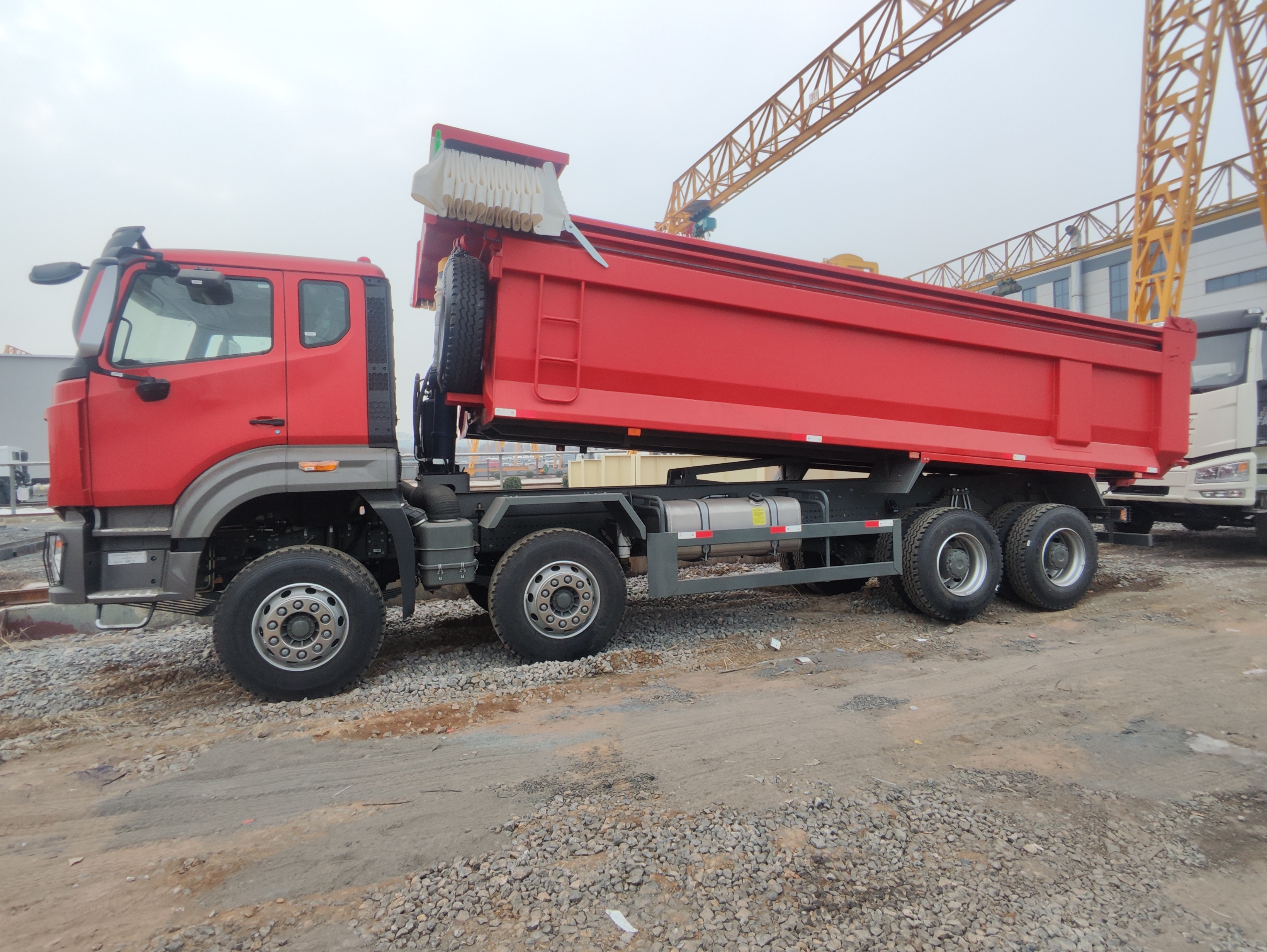

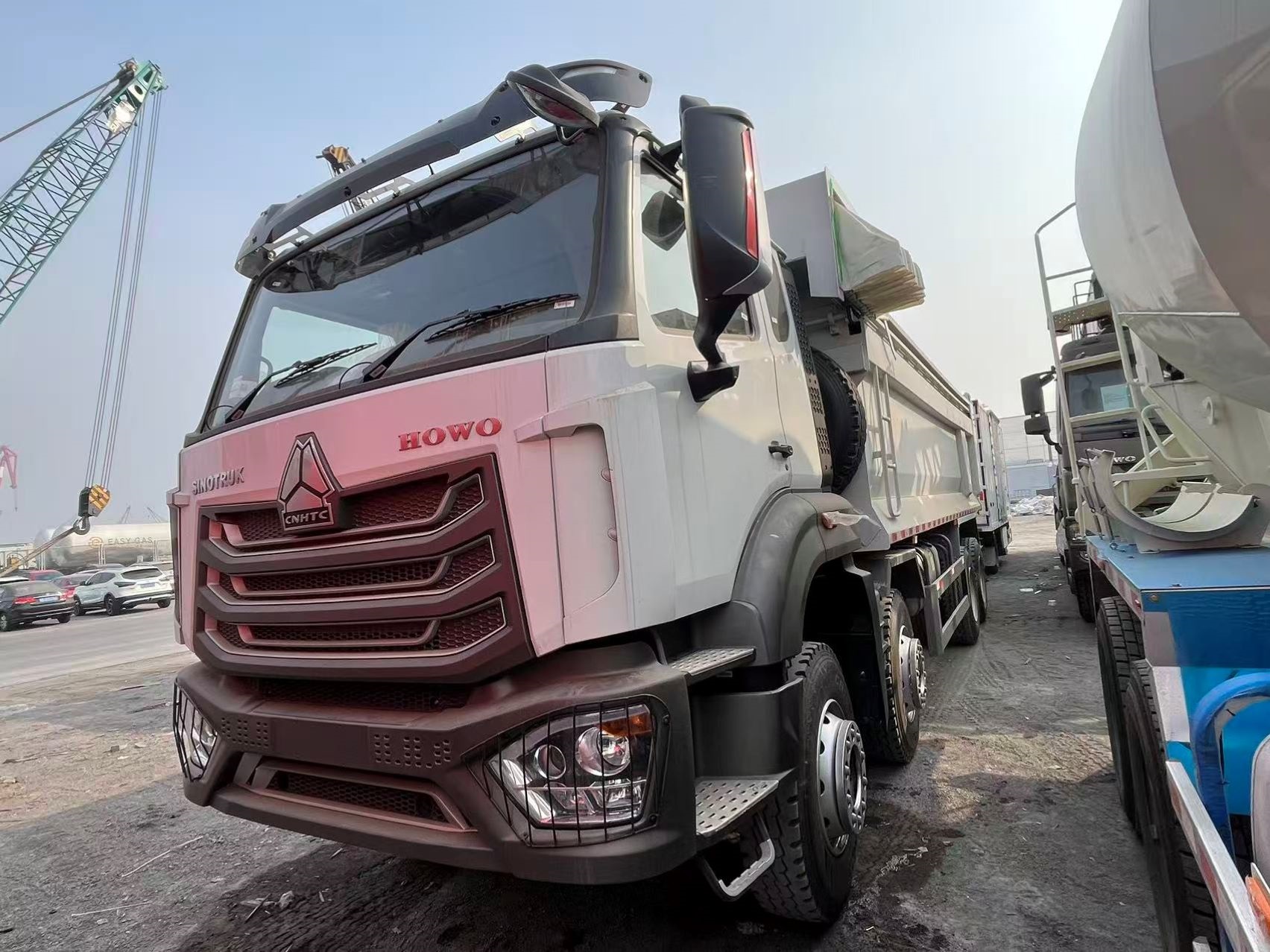

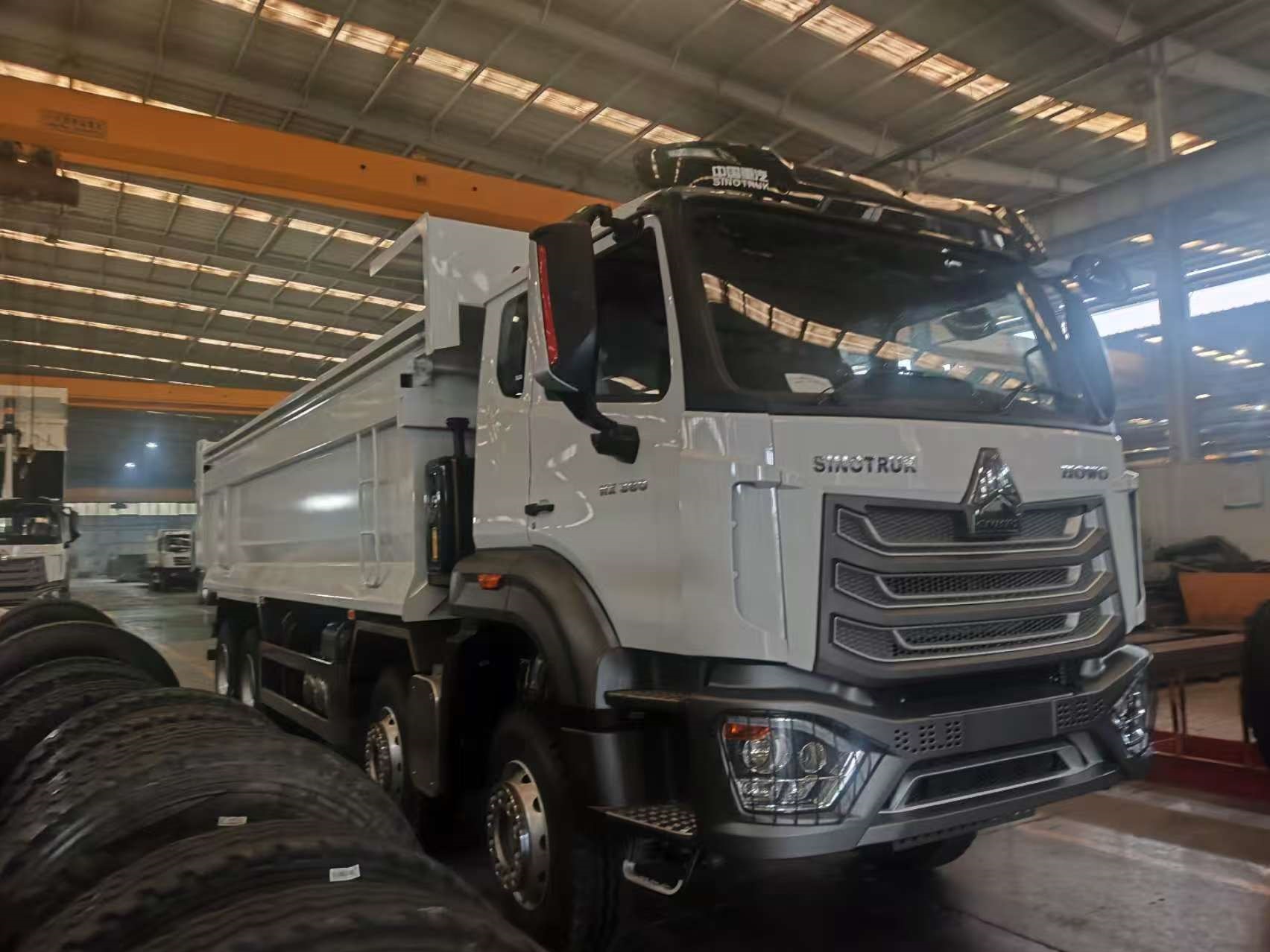

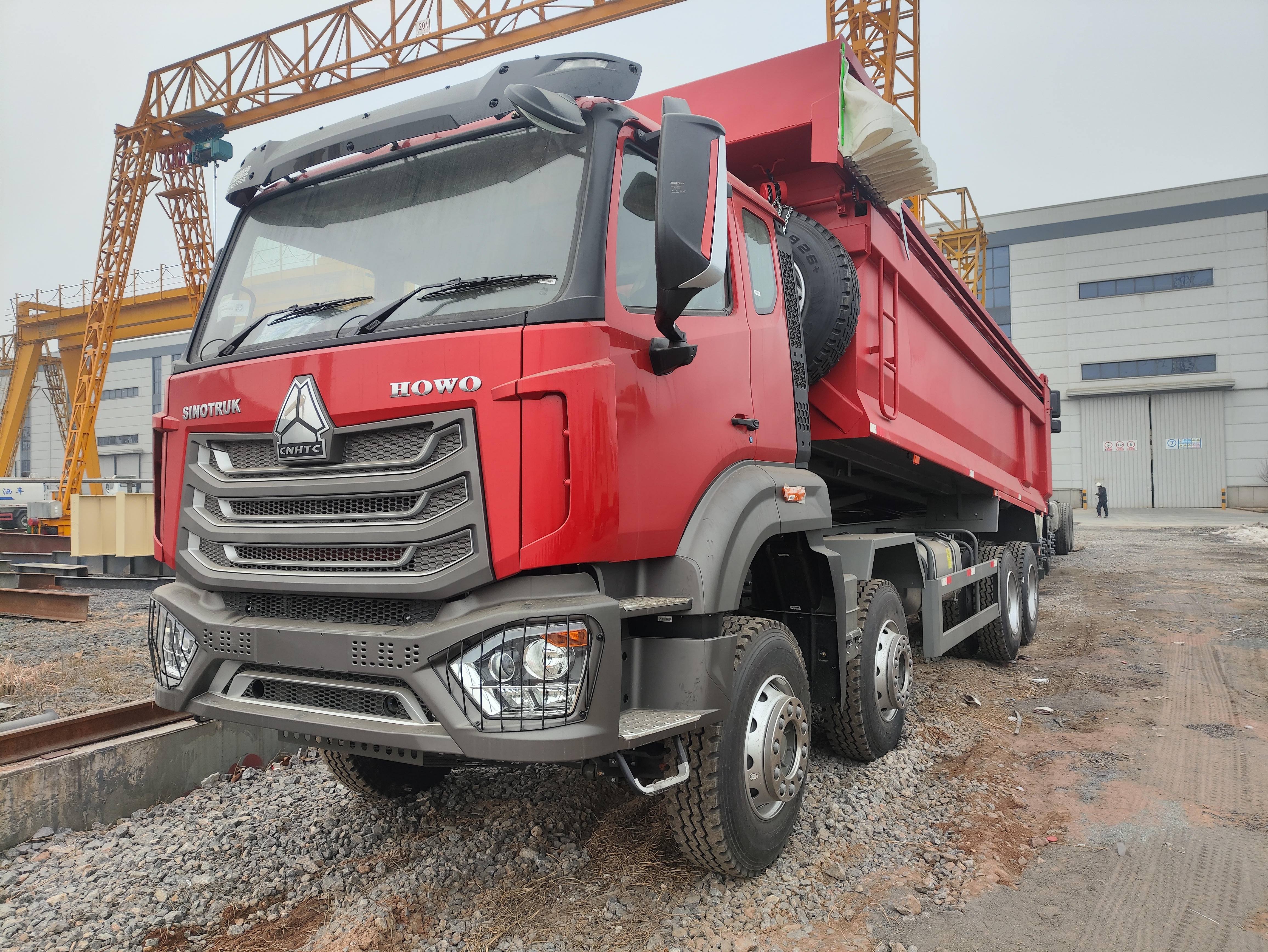

Product Photos

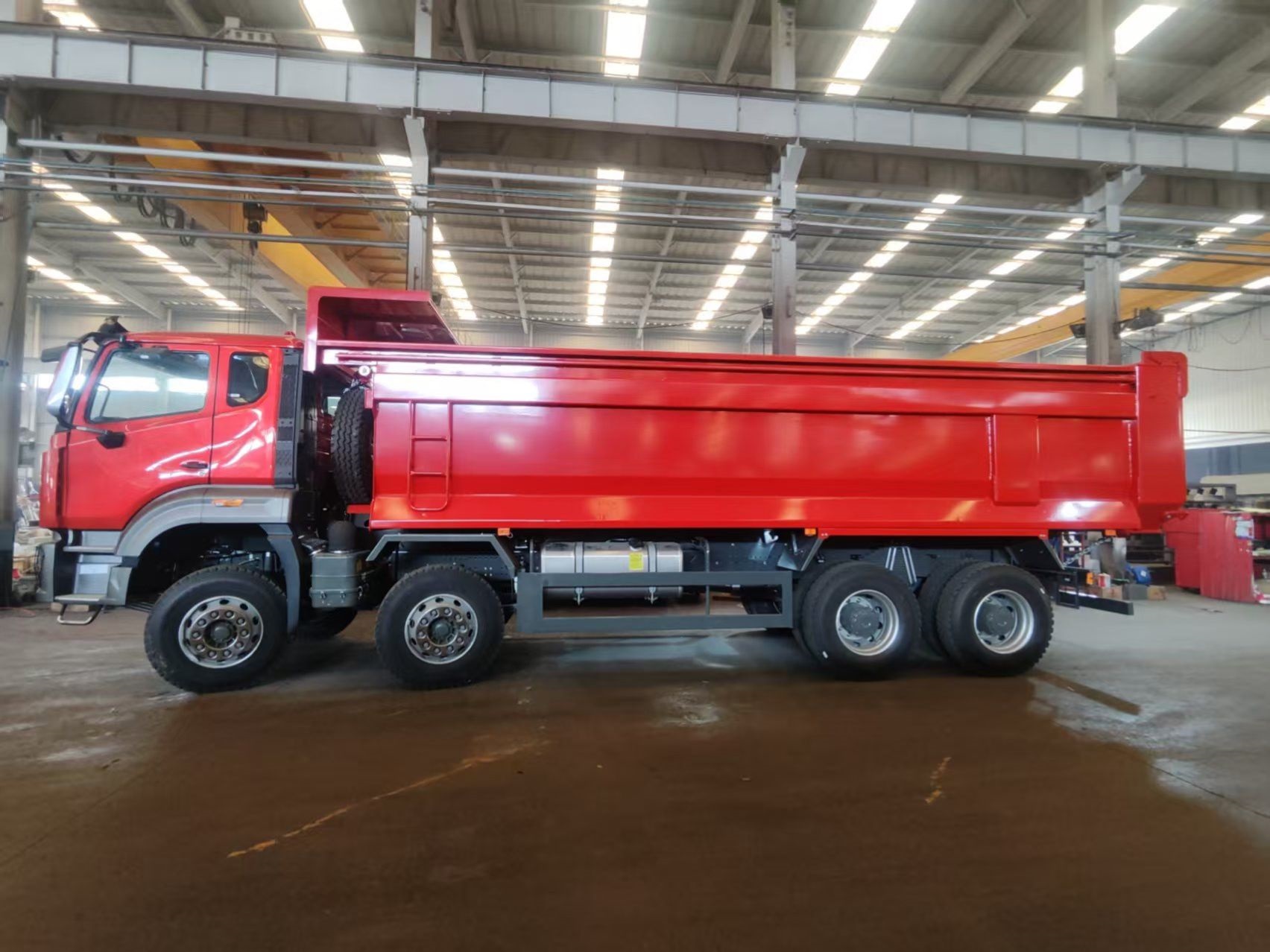

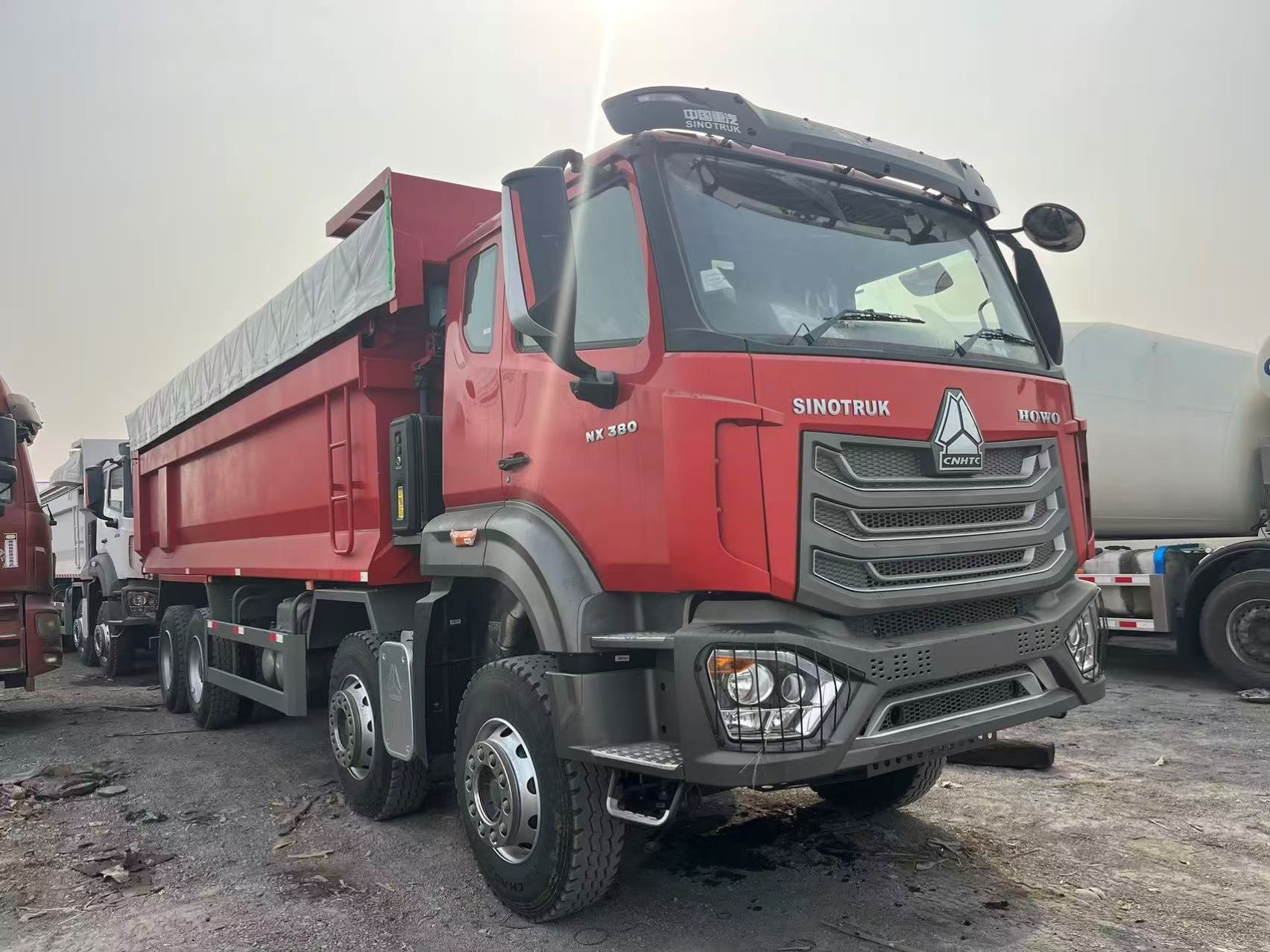

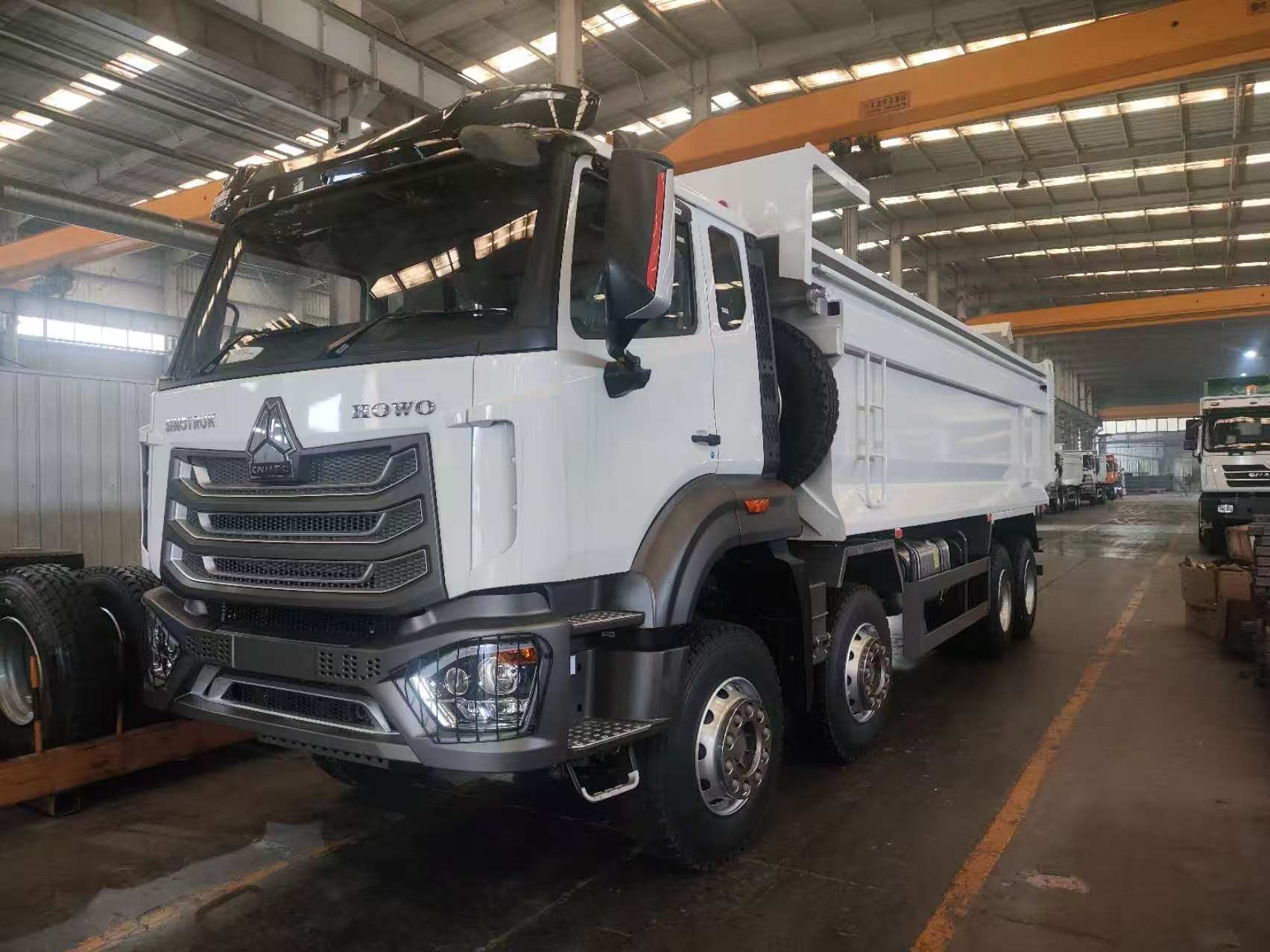

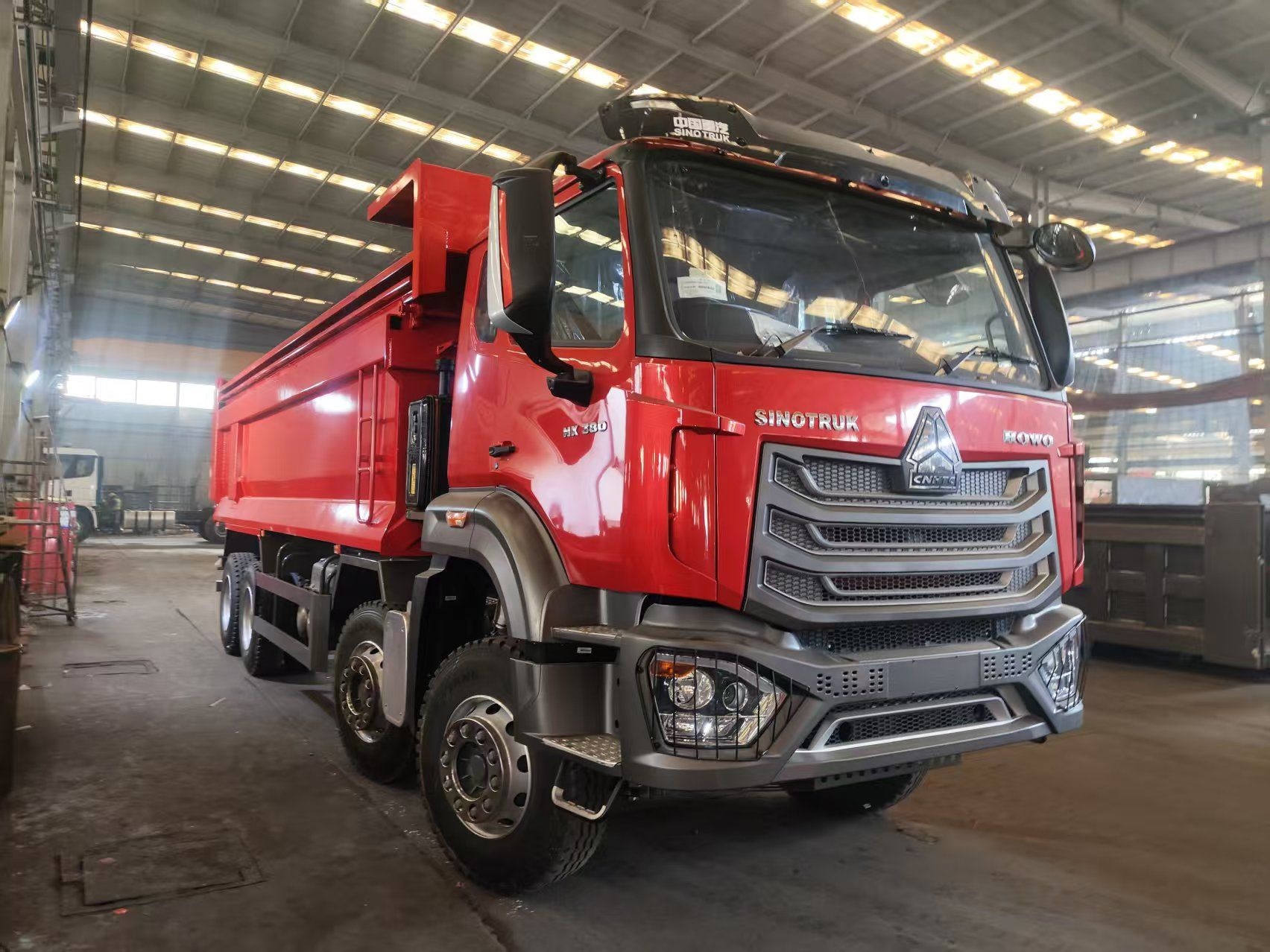

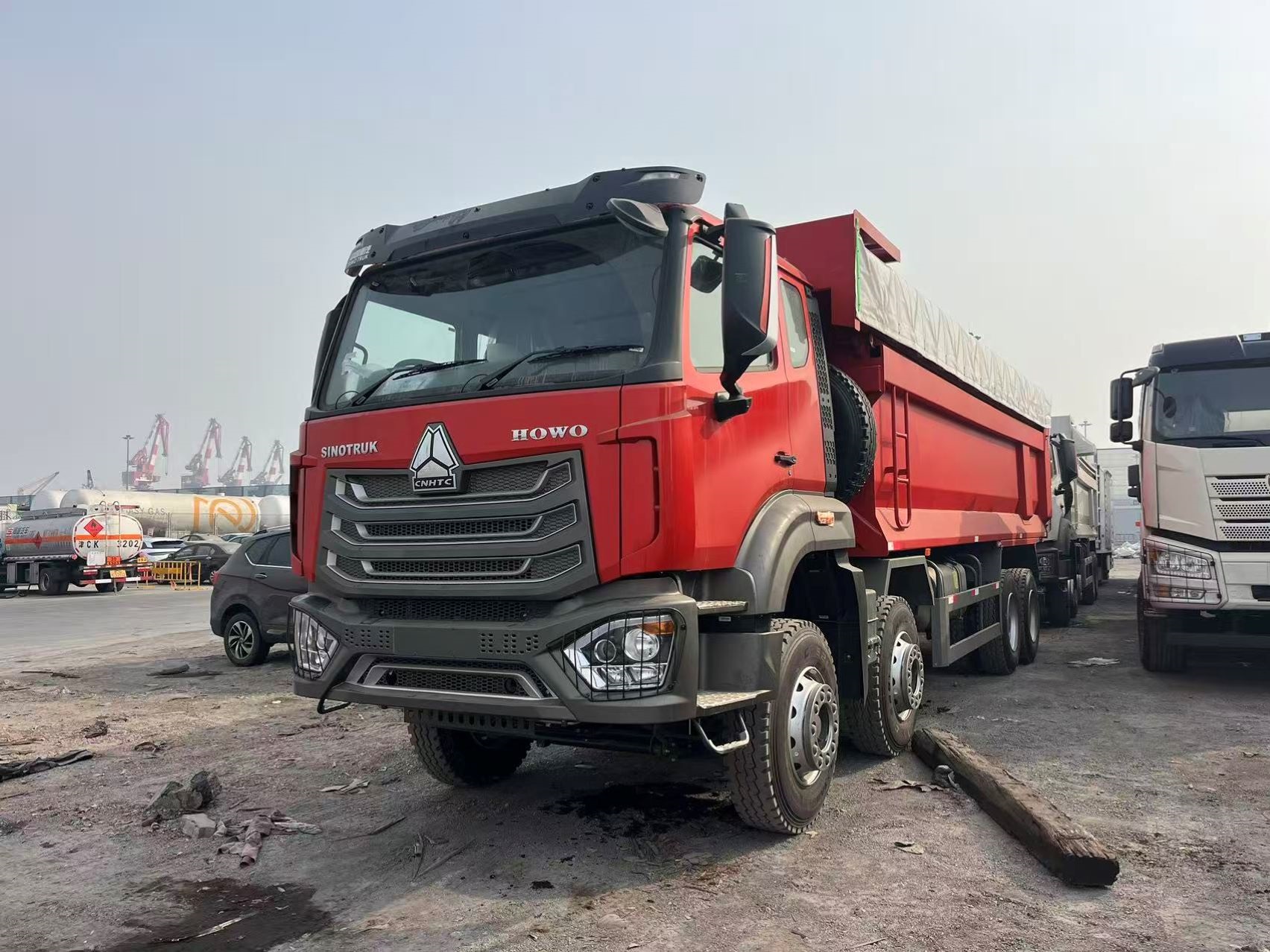

20260220_Guyana 3 SINOTRUK Dump Truck (Scarlet Li CK2025H7019A) (2).jpg20260220_Guyana 3 SINOTRUK Dump Truck (Scarlet Li CK2025H7019A) (3).jpg20260220_Guyana 3 SINOTRUK Dump Truck (Scarlet Li CK2025H7019A) (4).jpg20260220_Guyana 3 SINOTRUK Dump Truck (Scarlet Li CK2025H7019A) (5).jpg20260220_Guyana 3 SINOTRUK Dump Truck (Scarlet Li CK2025H7019A) (6).jpg20260220_Guyana 3 SINOTRUK Dump Truck (Scarlet Li CK2025H7019A) (7).jpg
