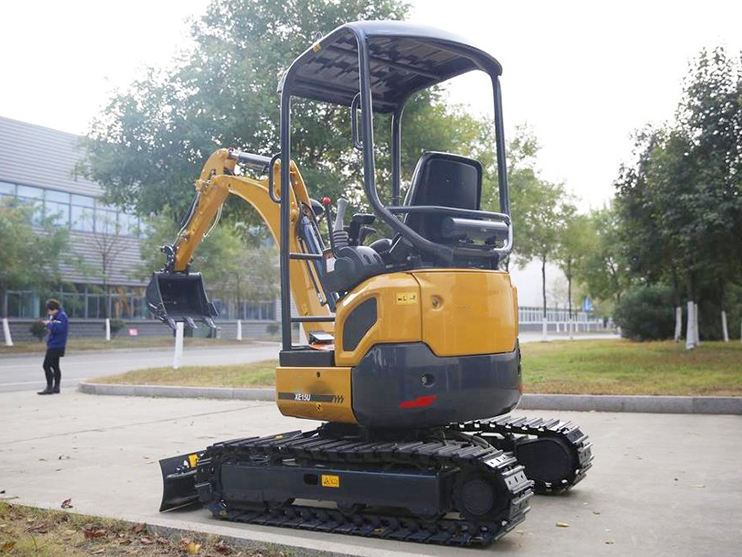

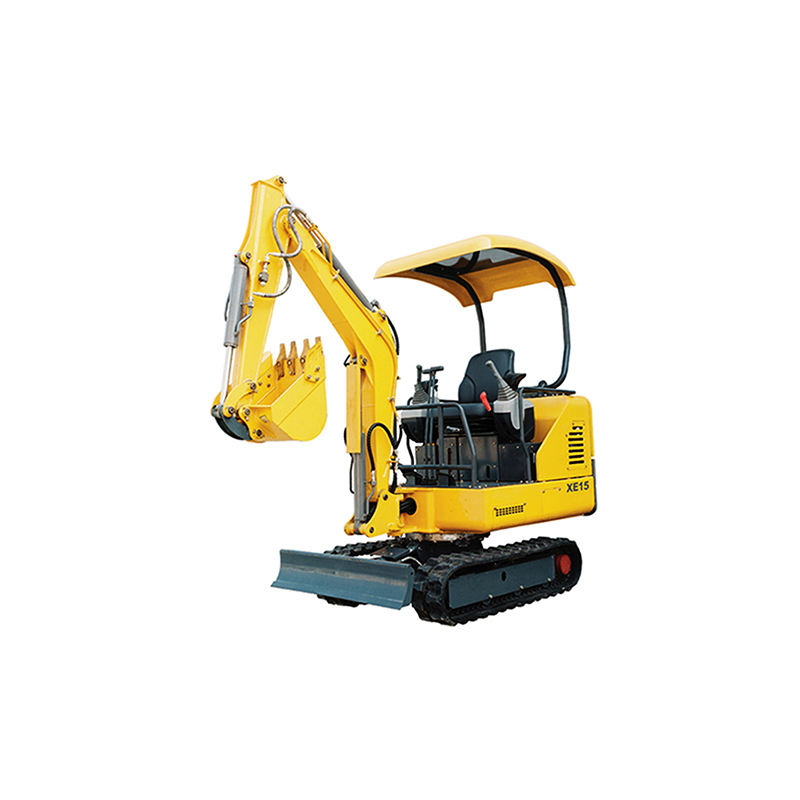

XCMG XE15U Earthmoving Machinery Crawler Excavator

See Full Gallery (7-photos & videos)

Model:

XE15U

View All >

Category:

Earthmoving Machinery

Product:

Crawler Excavator

Brand Name:

XCMG

Dimension (mm):

Operating weight (kg):

1795kg

Origin:

china

Manual Download

Key Attributes

Bucket Capacity:

0.04m³

Max. Digging Height:

3475 mm

Max. Digging Depth:

2290 mm

Engine Brand:

chinese top brand

Engine Power:

9.8 kw

Digging Force:

16 kn

Climbing ability:

30°

Ground pressure:

28.5kpa

Walking speed:

3.9/1.9km/h

Rotary speed:

9.5r/mn

Displacement:

0.778L

Maxmum torque/speed:

44.5/1800 Nm/rpm

Operating welght:

1795kg

Packaging & Shipping

Overall Dimensions (L×W×H):

Overall Weight:

1795kg

Shipping Method:

Delivery Period:

Certificate:

Origin:

china

HS Code :

Detailed Specifications

Product Feature

XE15U Mini Hydraulic Excavator

The complete machine is small and exquisite in size and turning radius, mainly suitable for landscaping, urban construction, pipeline laying and other working conditions.
It uses a Chinese top brand engine, featuring low noise and excellent economical efficiency. The complete machine boasts outstanding inching performance and small impact by virtue of the perfect matching of the engine and the hydraulic components.

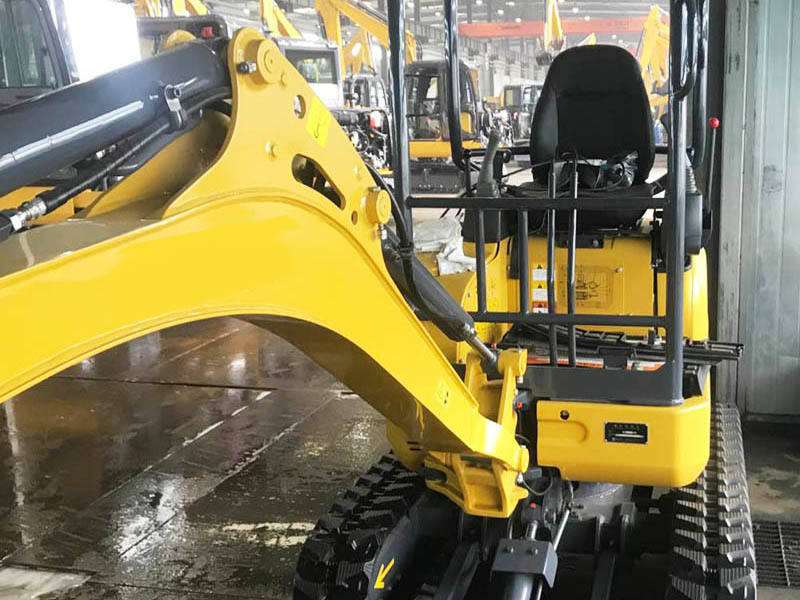

Its cab uses silicone oil shock absorption with a new suspension seat provided, able to give the operator a comfortable working environment.
The hydraulic main valve and key hydraulic pipelines and daily maintenance points are arranged in the full-open front and rear hoods, which can further facilitate daily maintenance.
The complete machine is configured with standard high-power air-conditioning system, standby power, magazine bags and storage boxes, etc. in accordance with a humanized design.

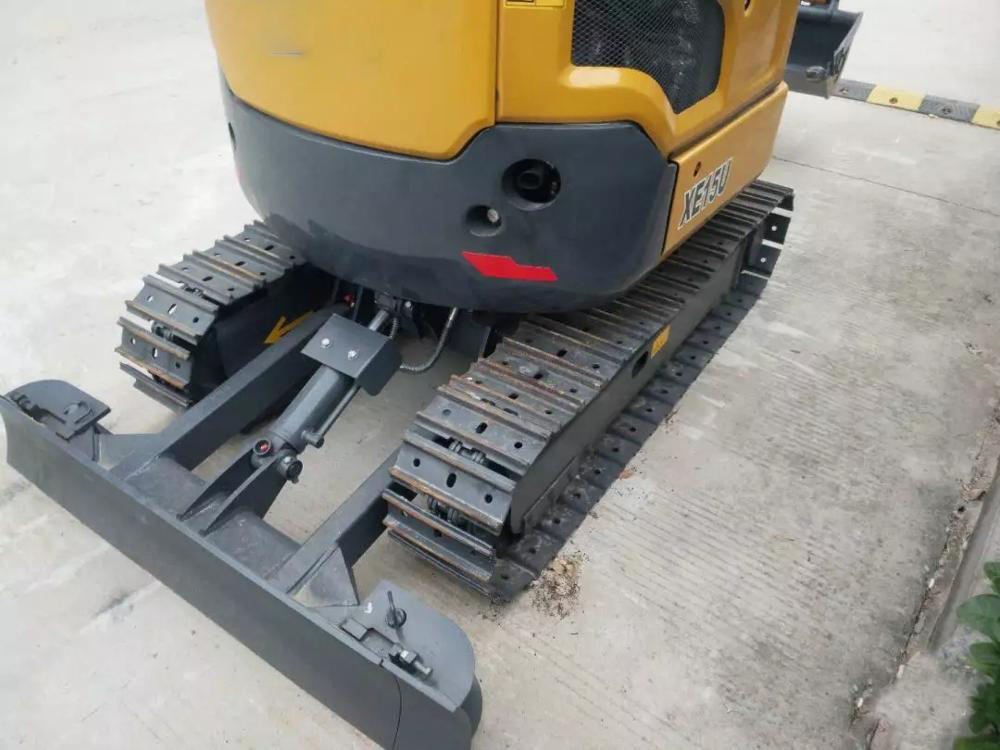

The optional rubber tracks, steel tracks, quartering hammers, quick changers and other auxiliary equipment have significantly improved its capacity for dealing with all kinds of working conditions.

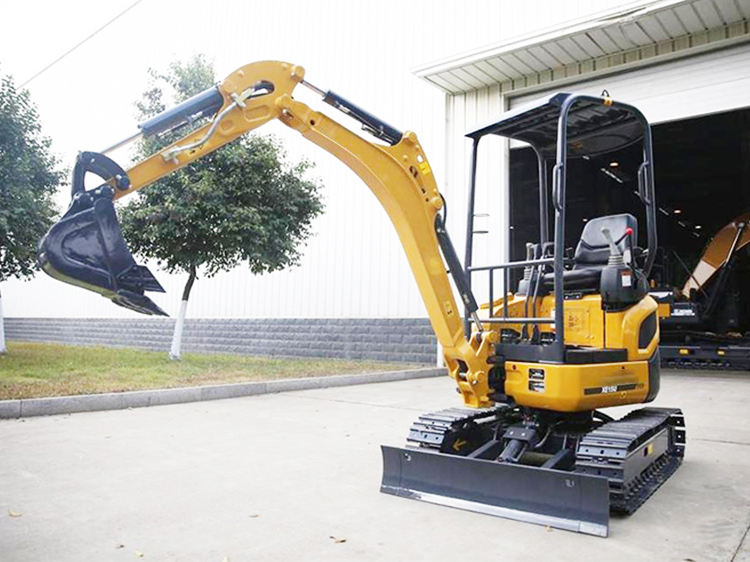

1 (3).png

Product Parameters

Item	Parameter
Model
Operating weight	1795 kg
Bucket capaciy	0.04 m3
Engine
Numiber of cyinders	3
Rated power	9.8/2300 kw/rpm
Maxmum torque/speed	44.5/1800 N.m/rpm
Displacement	0.778L
Main performance
Walking speed	3.9/1.9 km/h
Rotary speed	9.5r/min
Climbing ability	30。
Ground pressure	28.5kPa
Bucket digging force	16kN
Arm Digging Force	10kN
Maximum traction	15.6kN
Hydraulic system
Main pump rated flow	56.8L/min
Main safety valve pressure:	21.6MPa
Travel system pressure	21.6MPa
Rotary system pressure	11MPa
Pilot systom pressuro	3.9MPa
Oil capacity
Fuel tank capacity	17L
Hydraulic tank volume	18L
Engine oil capacity	38L
Outline dimension
Total length	3560 mm
Total width	990/1240 mm
Total heignt	2350 mm
Total width	990 mm
Ovarall width of chassis	990/1240 mm
Track widh	230 mm
Tread	1270 mm
Gauge	760/1010 mm
Counterweight clearance	450 mm
Minimum ground clearance	145 mm
Dozer(width/height)	1240/258 mm
Scope of work
Max.mining height	3475 mm
Max. unloading height	2415 mm
Max. mining depth	2290 mm
Max. vertical mining depth	1750 mm
Max. digging radius	3900 mm
Min. turning radius	1550 mm
Minimum turning diameter at the tail	620 mm
Maximum lifting height of bulldozer blade	260 mm
Max. digging depth of dozer	180 mm
Standard
Boom length	1828 mm
Arm length	950
Bucket capacity	0.04 m3

Product Application Of Mini Excavator

The complete machine is small and exquisite in size and turning radius, mainly suitable for landscaping, urban construction, pipeline laying and other working conditions.
