ZOOMLION ZTC800V552 Lifting Machinery Truck Crane

See Full Gallery (6-photos & videos)

Model:

ZTC800V552

View All >

Category:

Lifting Machinery

Product:

Truck Crane

Brand Name:

ZOOMLION

Dimension (mm):

15100×2850×3820mm

Operating weight (kg):

50ton

Origin:

China, Hunan

Manual Download

Key Attributes

Max. Lifting Capacity:

80ton

Max. Lifting Height:

67m

Main Boom Length:

49m

Number of Axles:

Boom Sections:

Engine Brand:

ZOOMLION

Vehicle curb weight:

49,805kg

Front axle load:

24,000 kg

Rear axle load:

26,000kg

Longitudinal distance of outriggers:

6.38m

Packaging & Shipping

Overall Dimensions (L×W×H):

15100×2850×3820mm

Overall Weight:

50ton

Shipping Method:

RO-RO

Delivery Period:

30days

Certificate:

CO, ISO

Origin:

China, Hunan

HS Code :

8705109200

Detailed Specifications

Products Description

ZOOMLION ZTC800V552 80 Ton Truck Crane for Bridge Building and Construction

The Zoomlion ZTC800V552 is a premium-class 80-ton hydraulic truck crane engineered for high-load lifting, operational efficiency, and field durability. Built using high-grade structural components, this crane ensures long-term reliability even in the most demanding job sites.

Its 49-meter main boom offers outstanding reach and lifting height, while the 15-ton counterweight ensures stable and balanced lifting operations across various terrains. With a maximum lifting moment of 3180 kN·m, the crane delivers superior hoisting power, making it ideal for tasks such as bridge construction, wind turbine assembly, and large-scale industrial lifting.

The machine is powered by the Weichai WP12.357E50 engine, offering high torque and energy efficiency. Its advanced hydraulic system and intelligent control interface enhance safety, load management, and operator comfort. A well-designed operator cabin improves visibility and control with intuitive displays and ergonomic seating, reducing operator fatigue during long working hours.

The ZTC800V552 combines high performance with robust build quality, ensuring a long lifecycle and reduced maintenance downtime.

Product Paramenters

Item		Unit	Value
Working performance	Max. rated lifting capacity	kg
	Max. load moment of basic boom	kN.m	3180
	Max. load moment of main boom(fully extended)	kN.m	1710
	Max. lifting height of basic boom	m	13.8
	Max. lifting height of main boom	m	49.8
	Max. lifting height of jib	m	67.0 (73.0)
Working speeds	Max. hoist rope speed(Main winch)	m/min	Drum 4th layer
	Max. hoist rope speed(Auxiliary winch)	m/min	≥110
	Boom demrricking up time	s	65
	Boom demrricking up time	s	145
	Slewing speed	r/min	1.6
Driving	Max. driving speed	km/h
	Max. gradeability	%	40
	Turning diameter	m	24
	Min. ground clearance	mm	270
	Oil consumption per hundred kilometers	L	46
Mass	Deadweight in driving condition	kg
	Complete vehicle kerb mass	kg	49805
	Front axle load	kg	24000
	Rear axle load	kg	26000
Dimension	Overall dimensions(L×W×H)	mm
	Longitudinal distance between outriggers	m	6.38
	Transversal distance between outriggers	m	For completely extended outriggers: 8.0 m; For intermediately extended outriggers: 5.3 m
	Tail slewing radius	mm	4390
	Main boom length	m	12.6 – 49.0
	Main boom angle	°	-2 - 80
	jib length	m	10.7,17.5
	Offset	°	0,15,30

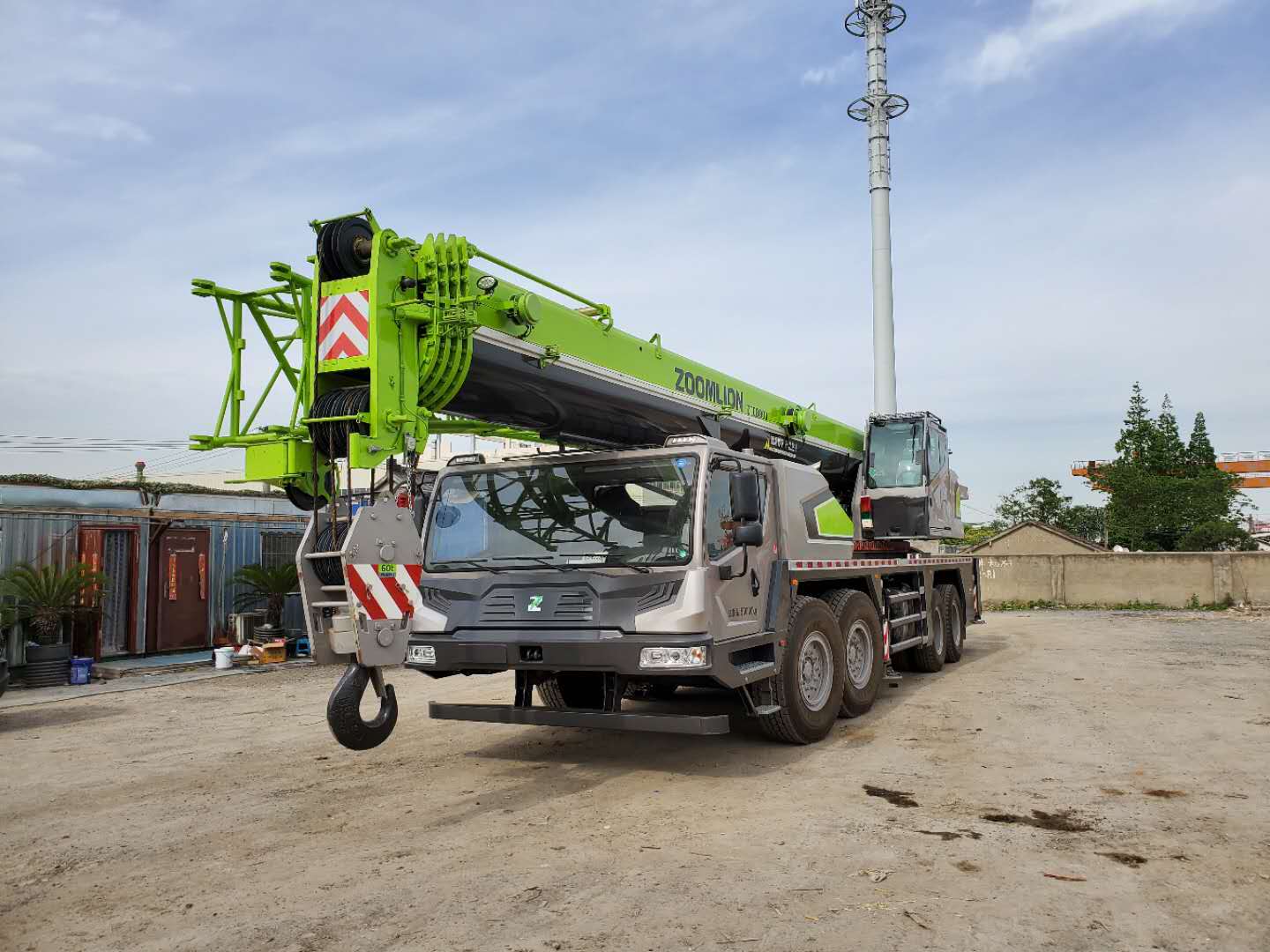

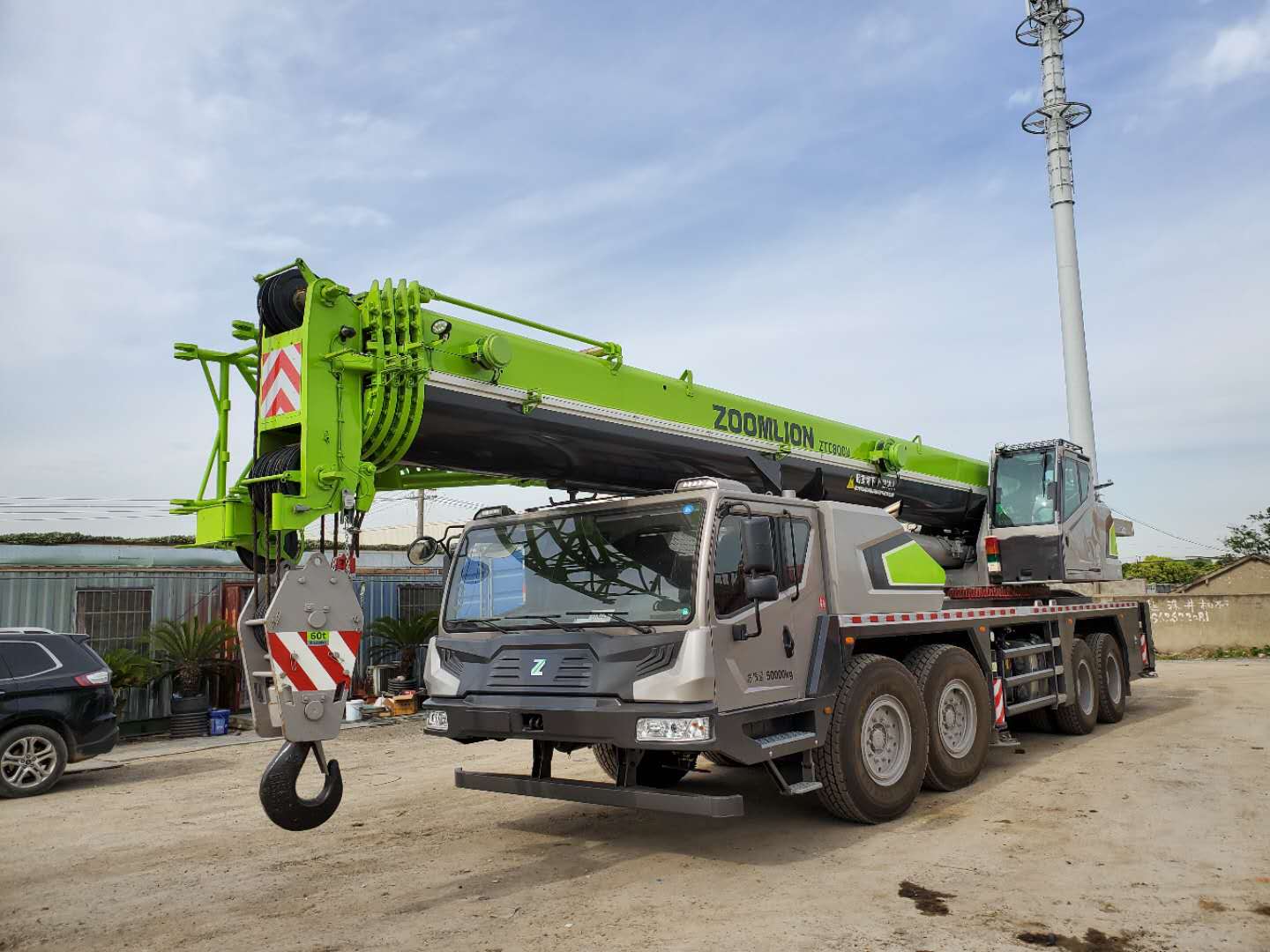

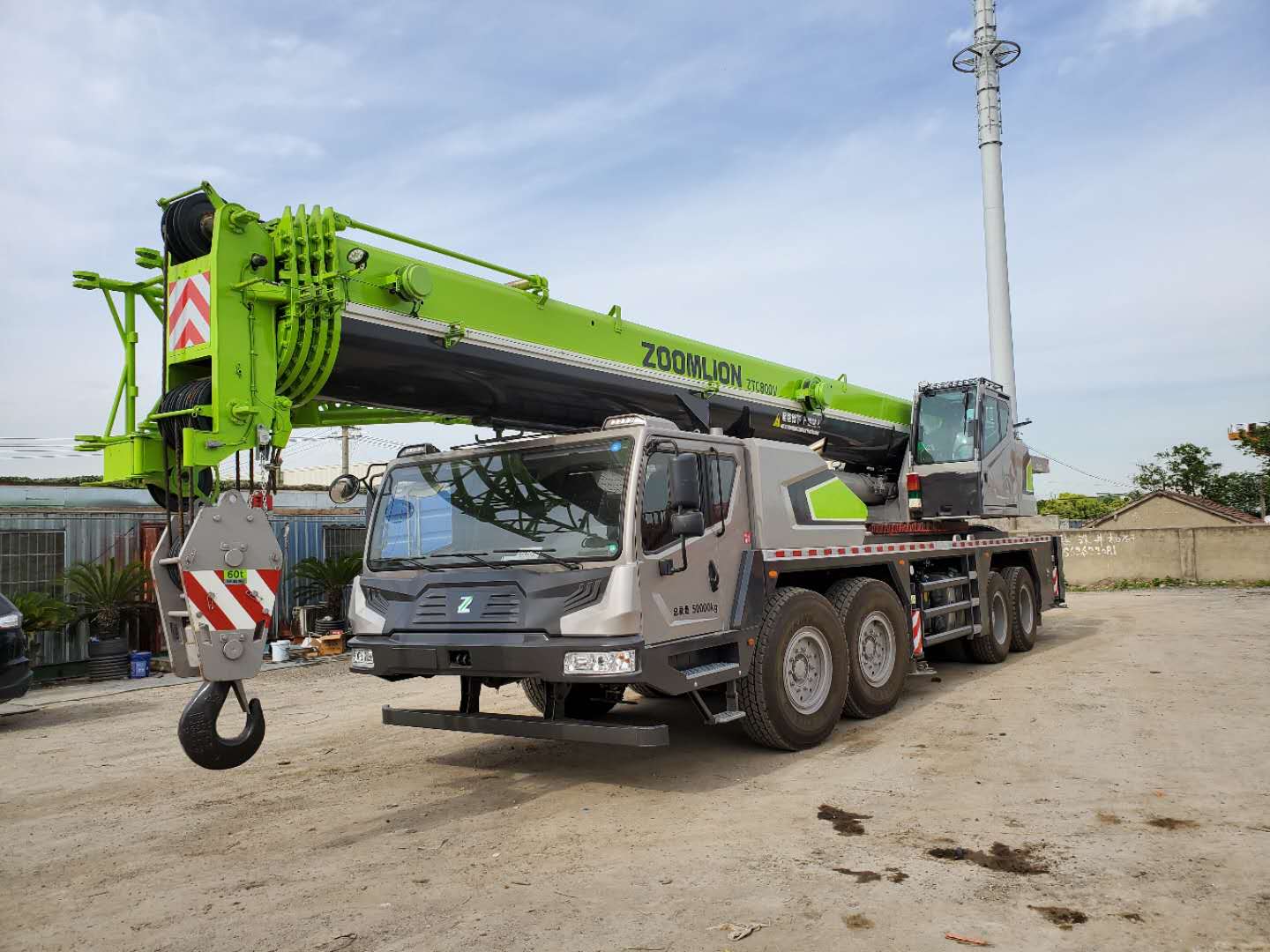

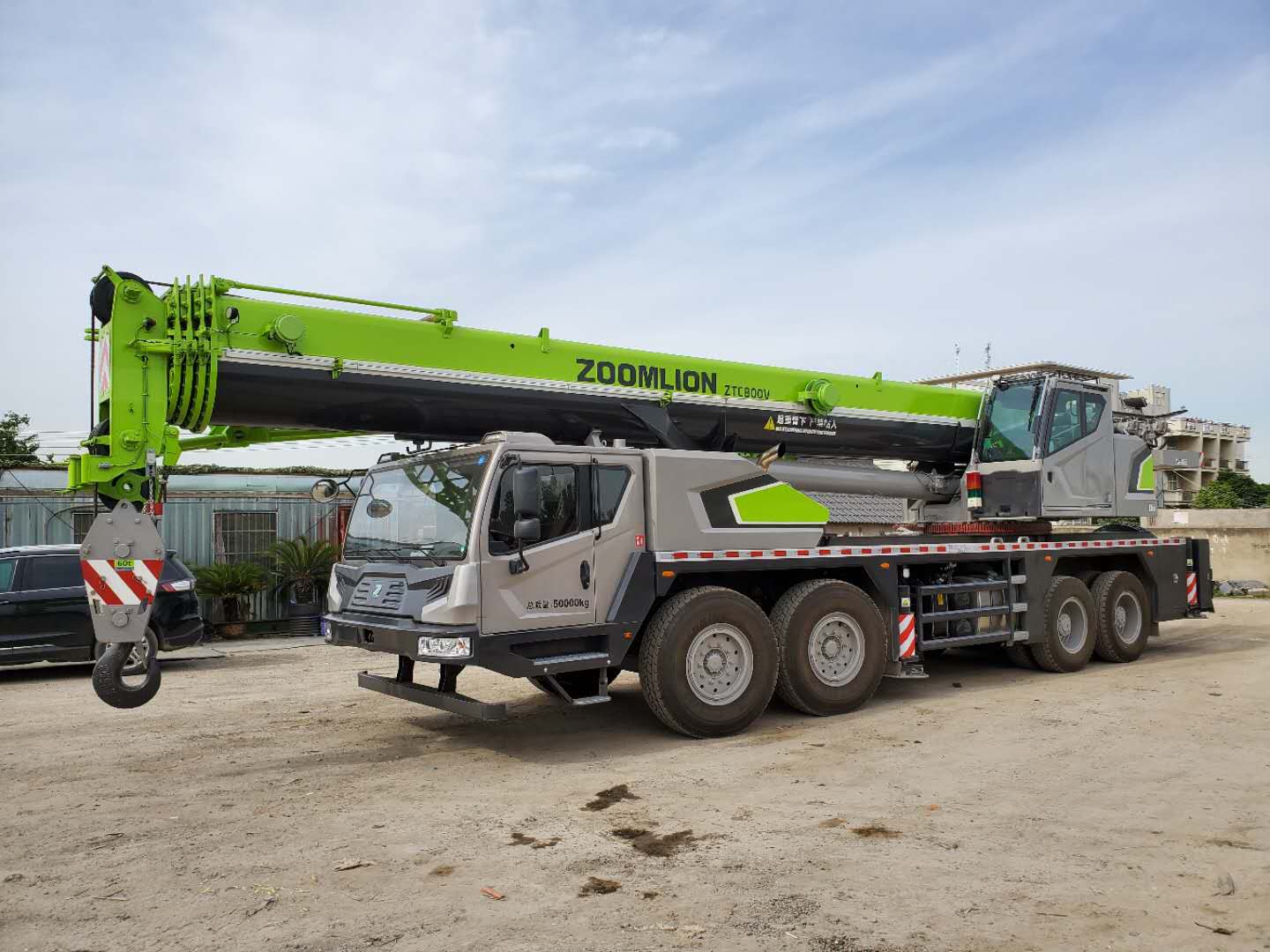

ZTC800V552 (4).jpg ZTC800V552 (5).jpg ZTC800V552 (6).jpg ZTC800V552 (7).jpg
