SANY STC1000C5-8 Lifting Machinery Truck Crane
Model:
STC1000C5-8
View All >
Category:
Lifting Machinery
Product:
Truck Crane
Brand Name:
SANY
Dimension (mm):
14980*3000*3940 mm
Operating weight (kg):
50000 kg
Origin:
China
Key Attributes
Max. Lifting Capacity:
100 t
Max. Lifting Height:
77.5 m
Main Boom Length:
12.9 m
Number of Axles:
4
Boom Sections:
5
Engine Brand:
top brand
Span:
8.3(5.55)*6.63 m
Min. rated working radius:
4.42 m
Max. travel speed:
80 km/h
Max. grade ability:
45 %
Rated Lifting Moment:
3557 kN.m
Color:
Yellow
Packaging & Shipping
Overall Dimensions (L×W×H):
14980*3000*3940 mm
Overall Weight:
50000 kg
Shipping Method:
By sea
Delivery Period:
45-55 working days
Certificate:
CE COC
Origin:
China
HS Code :
STC1000C5-8
Detailed Specifications

PRODUCT OVERVIEW

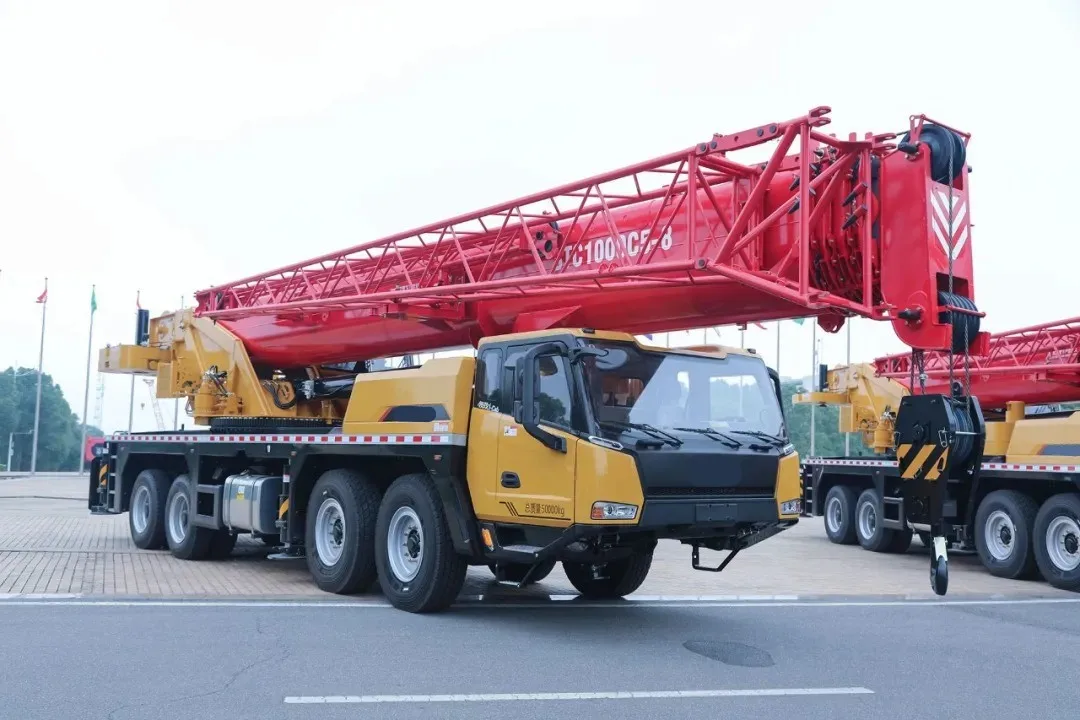

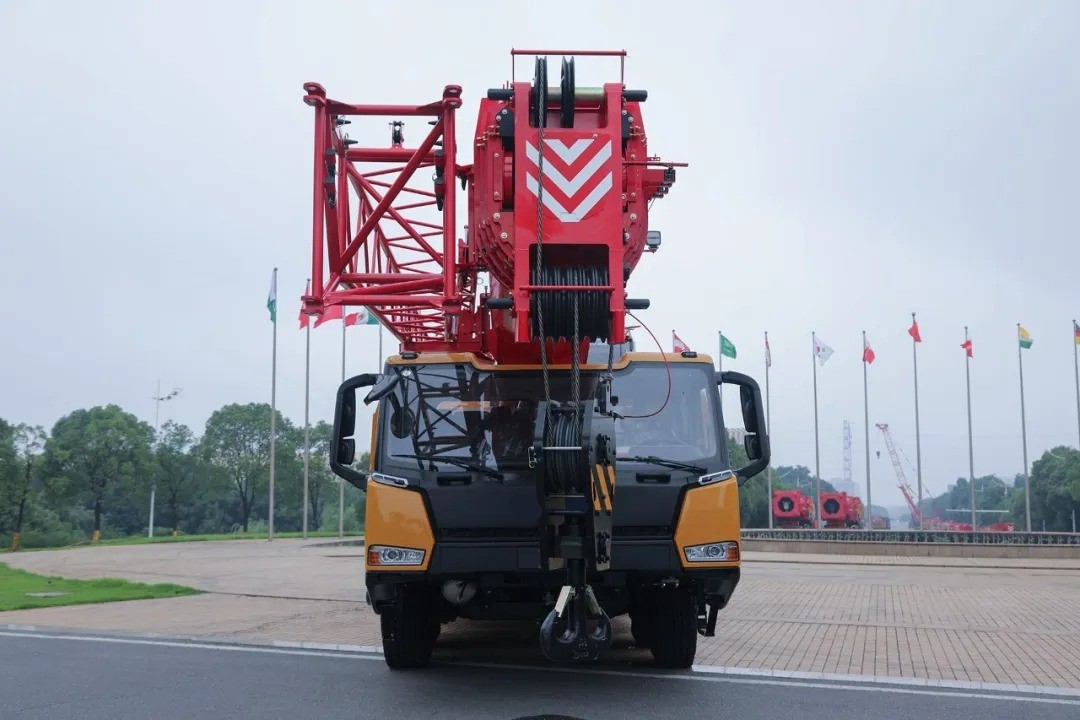

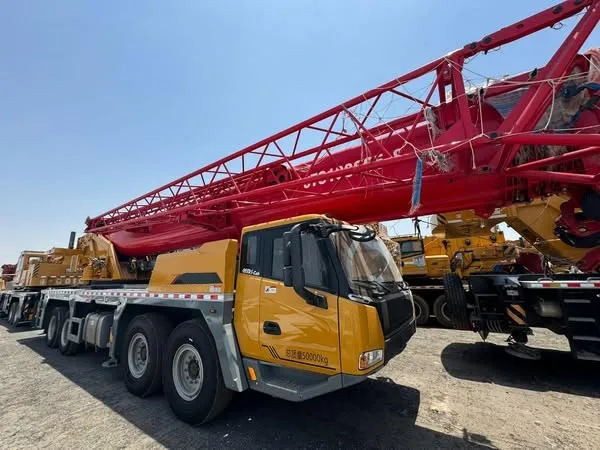

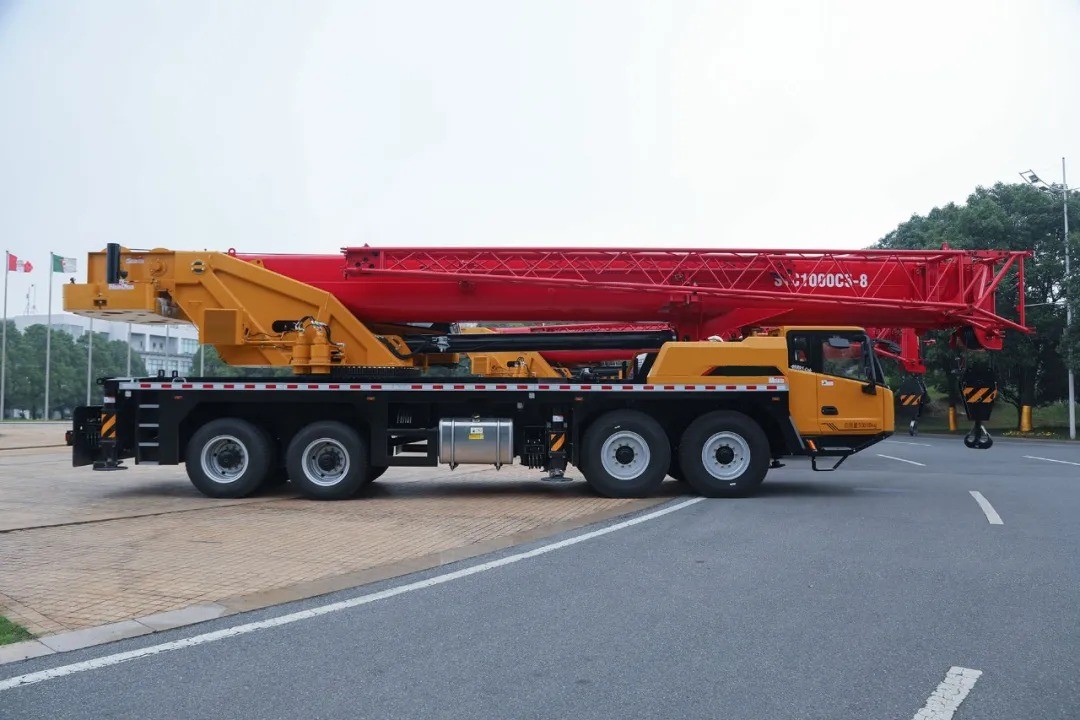

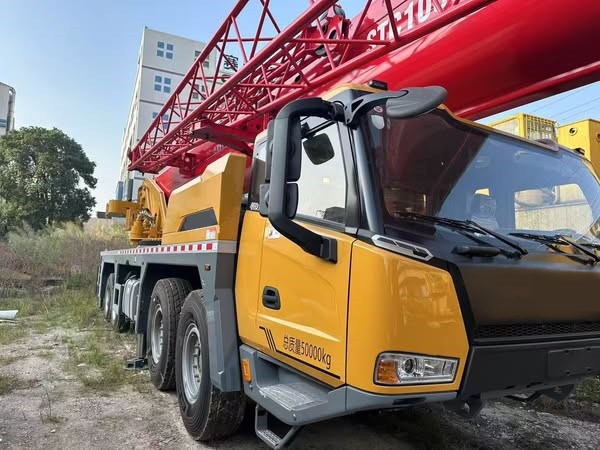

Hot Sale New Mobile Crane 100 Ton Truck Crane STC1000C5-8

As an outstanding representative of the industry's super-heavy-duty models, STC1000C5-8 boasts remarkable advantages in terms of "High energy-conservation, efficiency, reliability, and comfort" compared with industry's like products and is extensively applicable for earth- moving projects, aggregate yards, municipal constructions, and other bulk material transports.

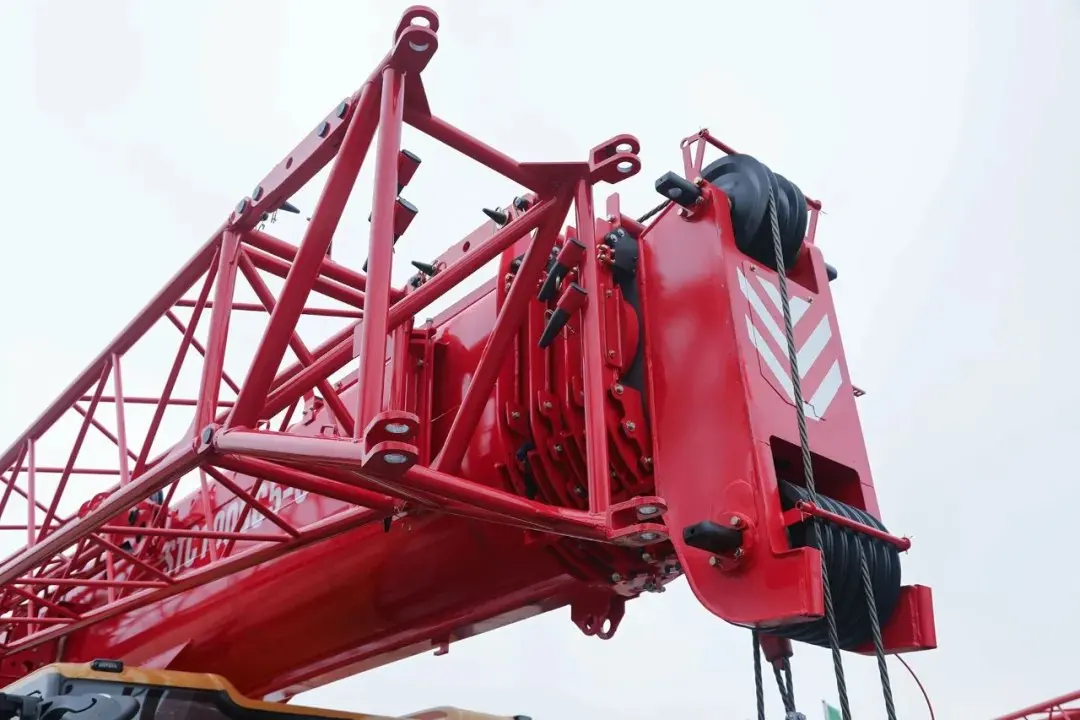

■ Extra large U-shaped cross-section 5-section main boom, with a full main boom extension of 50.5m, and a standard 17.5m jib.Optional 9.5m extension arm, maximum lifting height 78m;

■ H-type low front legs, span 8.3×6.63m, standard 21.5t counterweight, optional 2×2.5t, 2×5.5t side matching;

■ The maximum lifting moment of the basic arm is 3557kN.m (60.5t*6m), and the maximum lifting moment of the fully extended main arm is It weighs 16.5t (12m in width), and the maximum lifting range of the main arm is 44m.



CONTACT INFO

 Zing Zhan

Mobile/Whatsapp/Wechat: +86 19354875833

Email: zing@caterbe.com



PICTURES



PARAMETERS

Item Unit Parameter
Dimensions (length *width * height) mm 14980*3000*3940
Max. permissible weight kg 50000
Engine rated power/rpm kW/(r/min) 280/1900
Max. output torque/rpm Nm/(r/min) 1800/1100-1450
Max. travel speed km/h 80
Max. grade ability % 45
Fuel consumption per 100 km L 43
Max. total rated lifting capacity t 100
Max. load moment Base boom kN m 3557
Fully-extended boom 2372
Fully-extended boom + Jib 986
Boom length Base boom m 12.9
Fully-extended boom 50.5
Fully-extended boom + Jib 68



COMPANY PROFILE

Company Profile
packing & shipping
40'HQ Container
RoRo Shipment
Flat Rack Container
Bulk Shipment
Road Transportation
Railway Transportation
our advantages

Professional Team
Rich Experience

Stable and Strong
Supports From Factory

Powerful One-Stop
Service Ability

Over 100+ Top
Brands to Choose

24 Hours Online
Quick Response

Guaranteed
Quality

Good Company
Reputation

Competitive
Price

Our Factories
Our Factories
We have the largest-size factories for construction machinery and industrial equipment in Asia. Our factories have the world-class modern facilities and automated manufacturing process for production.
We cooperate with our factories toattend numerous exhibitions either in China or overseas, such as Canton Fair in Guangzhou,BAUMA CHINA in Shanghai, BICES in Beijing, etc.
Our factories are mainly located inJiangsu、Hunan、Shandong、Henan, Hebei provinces, convenient for travel by airplane,high-speed train and car within 2-3 hours from Shanghai. Welcome to start a wonderful journey with us in China.
Our Mission:
Strive to Contribute Value to Global Infrastructure by Exporting Quality Chinese Construction Machinery All Over the World
Our Vision:
To be the Most Influential One-Stop Construction Machinery Supplier in the World
Our Values:
Integrity、Passion、Diligence、Efficiency、Professionalism、Win-Win
  • ISO9001 Certificate

  • CTC Certificate

  • CNAB Certificate

  • CCC Certificate

  • CE Certificate

  • ISO9001 Certificate

AFTER-SALES SERVICE
Warranty

SUPEREGN grants our clients a twelve-month-period (1 Year) or 2000-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge as compensation, at our discretion.

Spare Parts

We are deeply committed to providing our clients with authentic, top-tier spare parts. We understand that the quality and precision of each part significantly contribute to the overall performance, functionality, and lifespan of your machine. That's why we assure you that our spare parts have undergone rigorous testing for quality and fit, to ensure they work seamlessly with your equipment.

Training

We are proud to offer an array of comprehensive training services, designed and customized to meet the unique needs of our diverse clientele. Our training sessions encompass a wide range of topics, including:

Installation & Maintenance

SUPEREGN is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the proper operation of construction machine. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation. We can also send engineers to client's site to do maintenance work.

Transactions with 200 Countries Worldwide
COMPANY OVERVIEW
Located in Shanghai, China
2900m² Office Space
+86-21-6277-0109
sales@superegn.comwww.superegn.com
Suite 2103, Gubei International Fortune Center, No. 1438 Hongqiao Road, Changning District, 200336 Shanghai, China

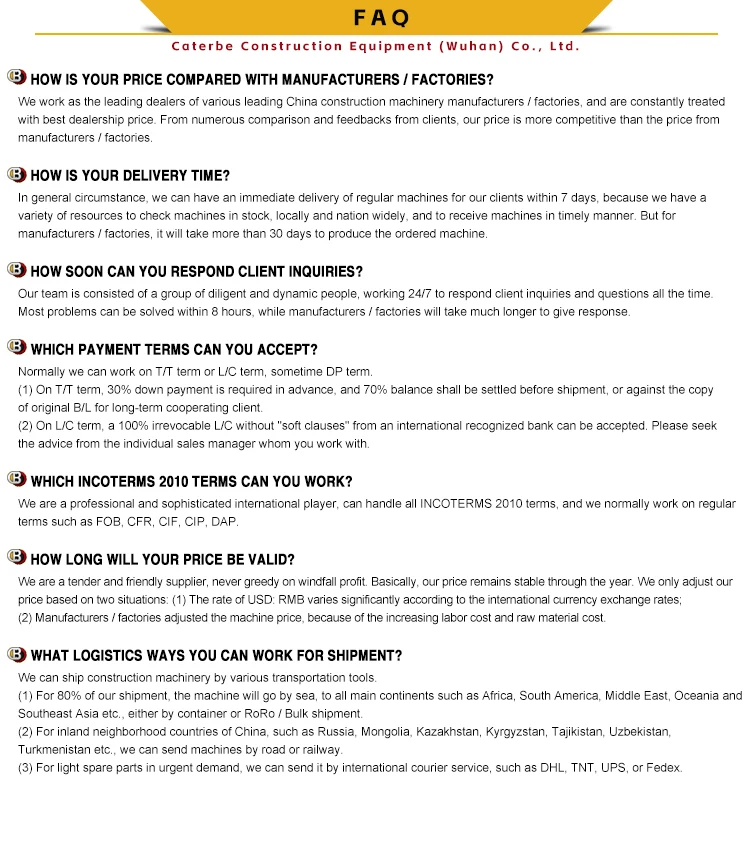

FAQ
