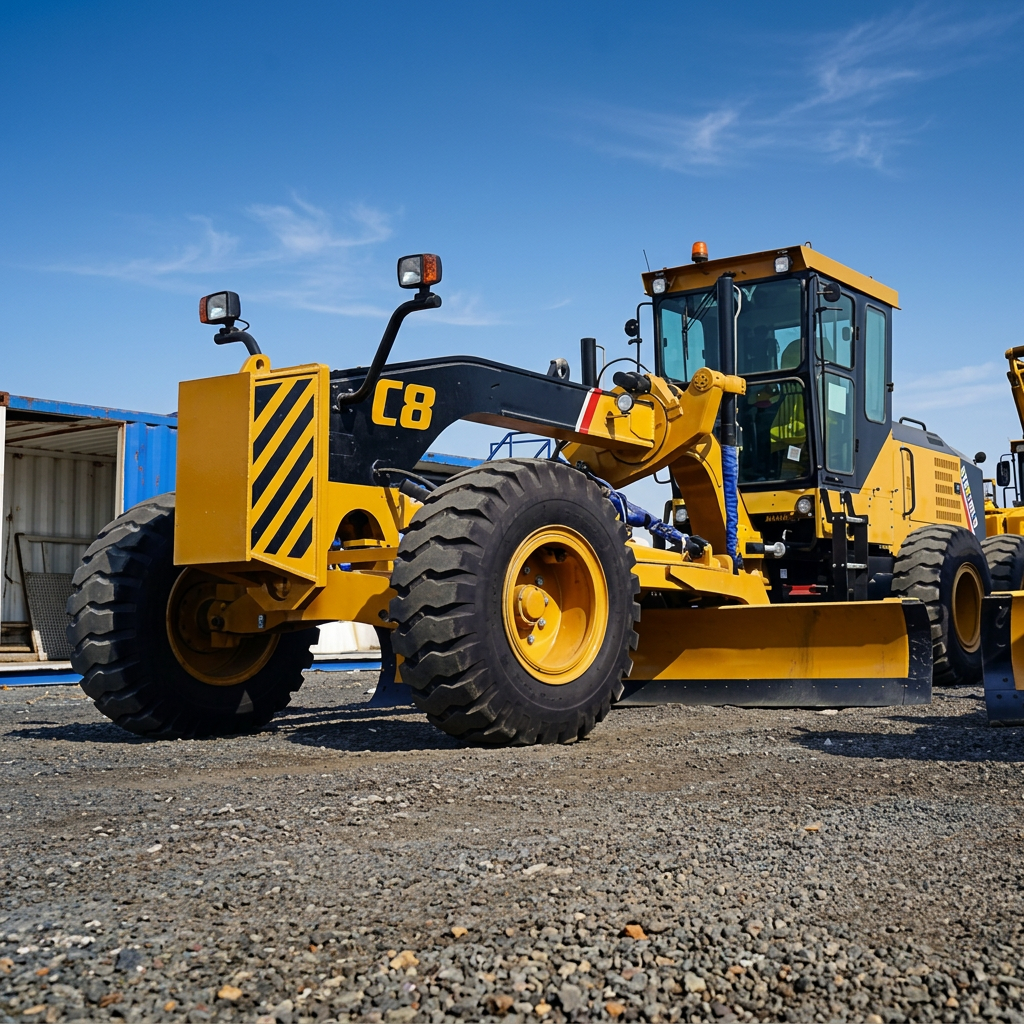

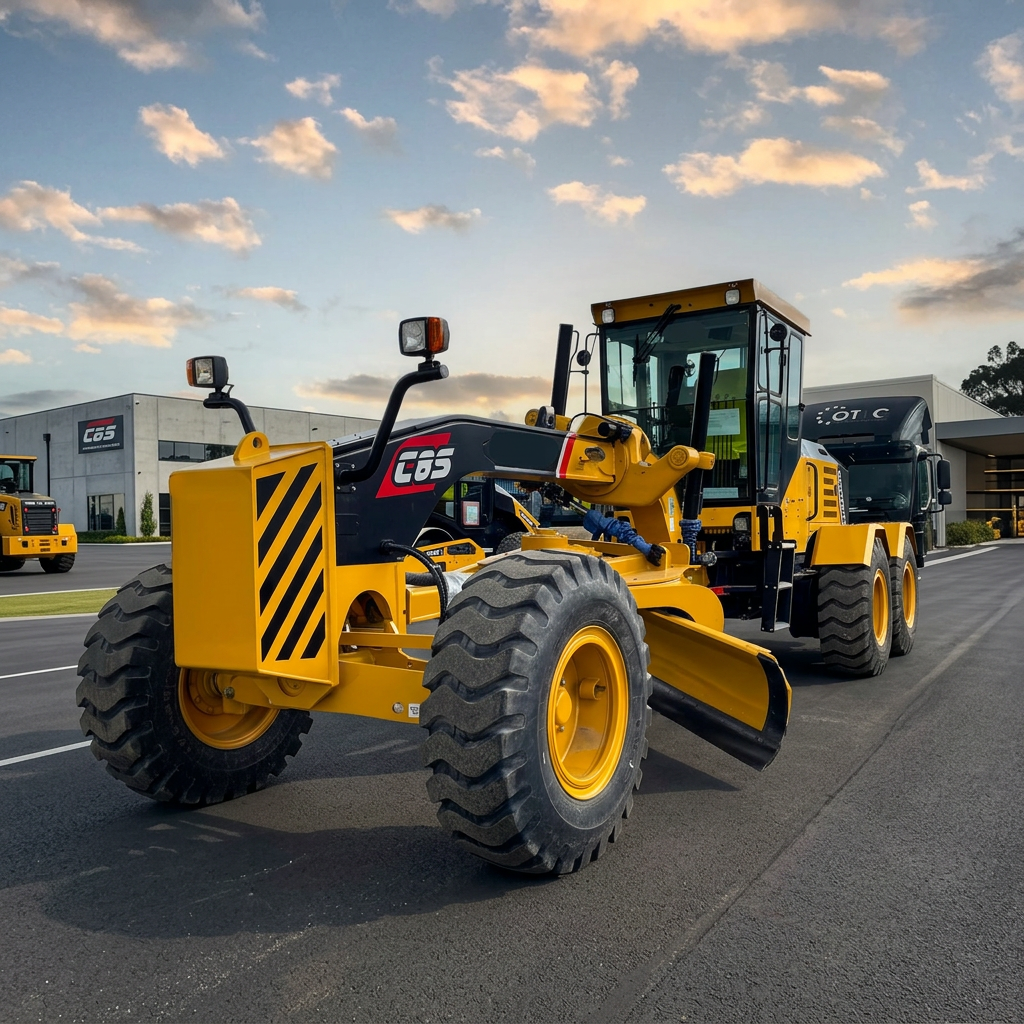

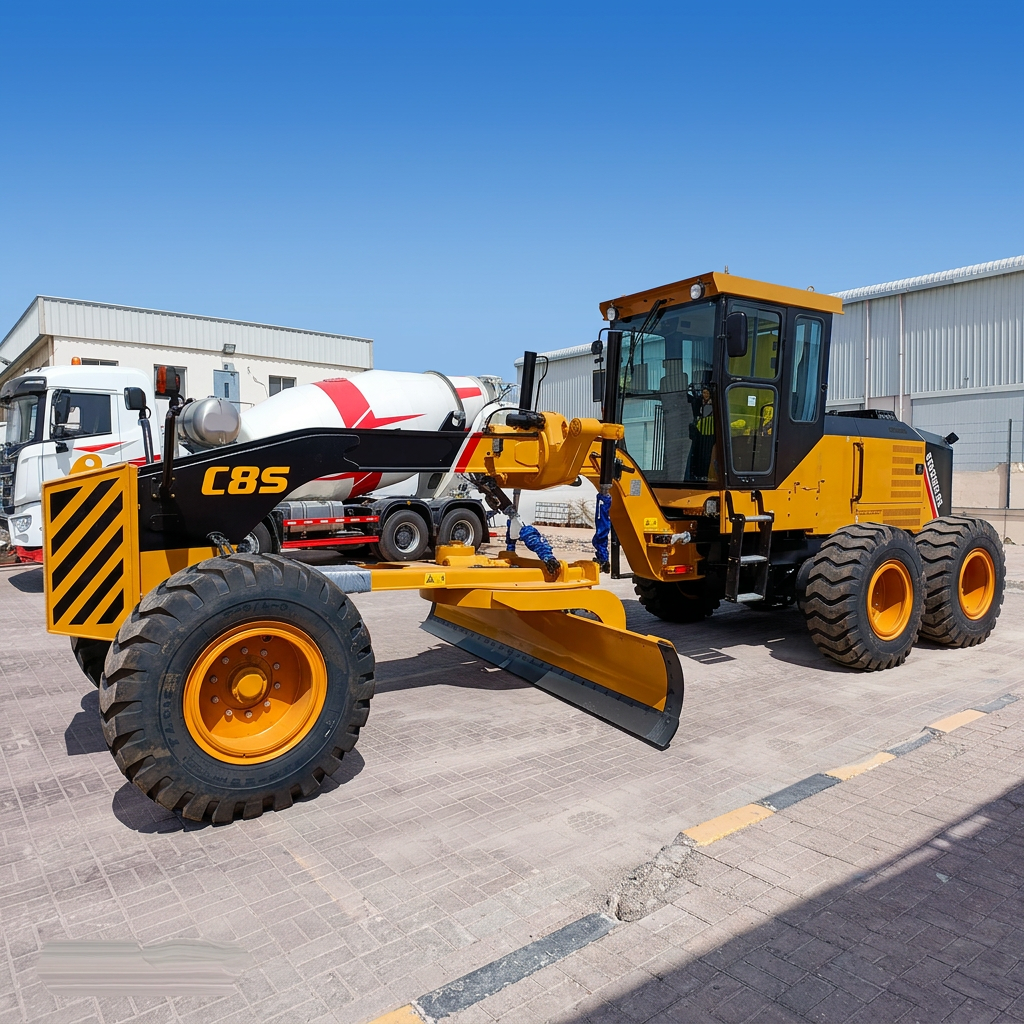

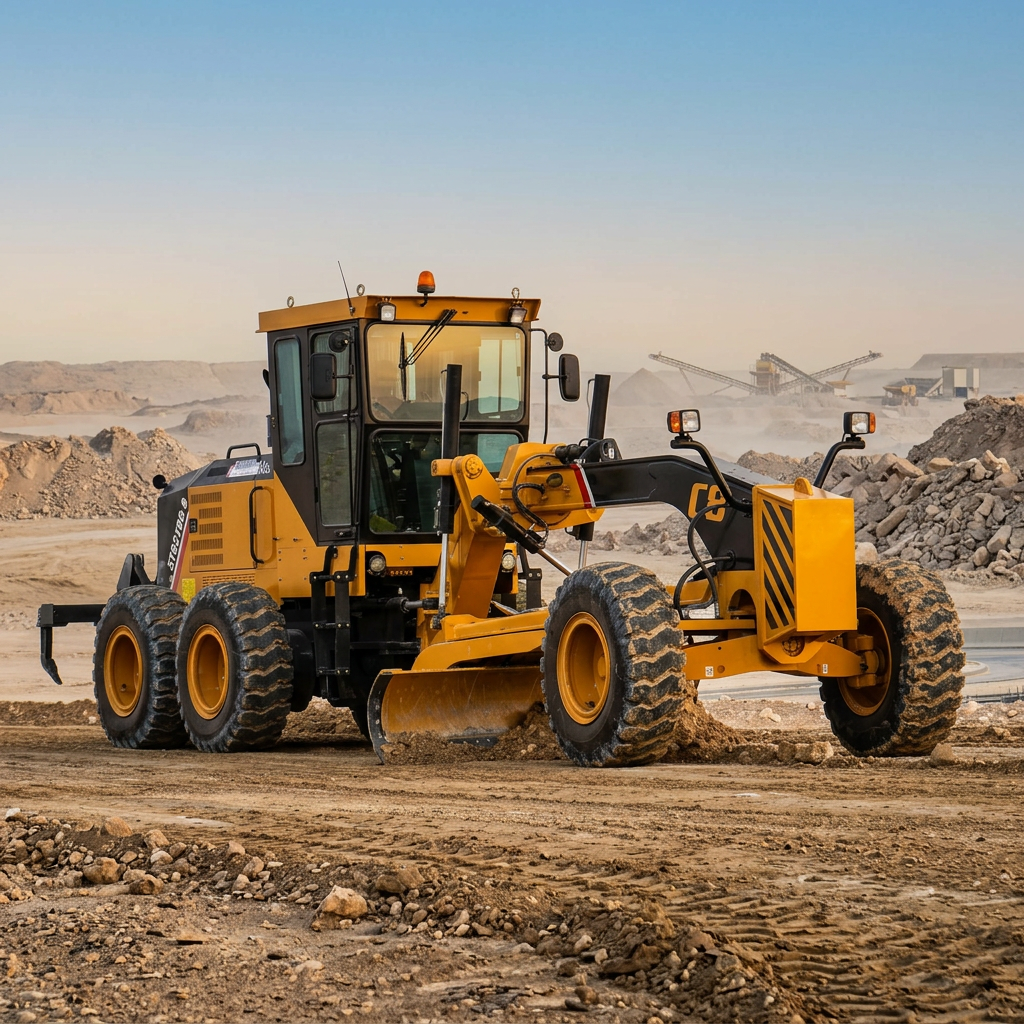

SANY STG210C-8S Road Construction Machinery Motor Grader
Model:
STG210C-8S
View All >
Category:
Road Construction Machinery
Product:
Motor Grader
Brand Name:
SANY
Dimension (mm):
9340×2740×3348 mm
Operating weight (kg):
16200 kg
Origin:
China
Key Attributes
Engine Power:
154 kW
Engine Brand:
Weichai
Travel Speed:
6/10/13/21/27/42 km/h
Max. Cutting Depth:
630 mm
Blade Width:
2560 mm
Attachment:
ripper/blade
Packaging & Shipping
Overall Dimensions (L×W×H):
9340×2740×3348 mm
Overall Weight:
16200 kg
Shipping Method:
Bulk ship
Delivery Period:
7-30 days
Certificate:
CE ISO
Origin:
China
HS Code :
8429209000
Detailed Specifications
分类参数项目单位STG210C-8S
动力系统发动机供应商 Supplier-WEICHAI(潍柴)
动力系统排放标准 Emission-CHINA Ⅲ(国三)
动力系统发动机型号 Model-WP6G210E330
动力系统额定功率 Rated powerkW154
动力系统额定转速 Rated rotation speedrpm2200
动力系统最大扭矩 Peak torqueNm900
尺寸参数标准(无前推土铲)外形尺寸(长 × 宽 × 高)mm9340×2740×3348
尺寸参数前桥到后轴距 Front and rear axle basemm6310
尺寸参数中后轮轴距 Middle and rear wheel basemm1538
尺寸参数后桥离地间隙 Clearance from rear axle to groundmm410
尺寸参数整机高度(驾驶室顶)Height to top of cabmm3348
尺寸参数整机高度(排气管顶)Height to exhaust pipemm2717
尺寸参数铲刀提升油缸顶高度 Height to top of blade lift cylindermm2795
尺寸参数前桥到铲刀距离 Length - front axle to moldboardmm2568
尺寸参数前后轴距 Wheel base - between front and rear axlesmm6310
尺寸参数中后轮轴距 Wheel base - between middle and rear wheelmm1538
尺寸参数前后轮距 Length - front tire to rear of machinemm8775
尺寸参数整机总长 Overall length - standardmm9340
尺寸参数后轮中心线宽度 Width - rear tire center linesmm2280
尺寸参数前轮外缘宽度 Width - outside front tiresmm2580
载荷参数标准(无前推土铲)整机重量 Standard (without counterweight)kg16200
作业装置铲刀长度 Length of blademm3660(12ft 标准)
作业装置铲刀高度 Height of blademm620
作业装置铲刀倾斜角 Tilt angle°±90°
作业装置铲刀回转角 Turning angle°360°
作业装置铲刀最大提升高度(地面以上)Max. lift above groundmm490
作业装置铲刀最大切土深度 Max. depth of cutmm630
作业装置铲刀侧移范围 Blade lip rangemm25° ~ -75°
行驶参数档位 Gears-6 forward and 3 reverse(6 前 3 后)
行驶参数前进速度 Forward speedkm/h6/10/13/21/27/42
行驶参数后退速度 Reverse speedkm/h6/13/27
行驶参数前轮转向角 Steering angle of front wheel°±45°
行驶参数前轮倾斜角 Tilt angle of front wheel°±17°
行驶参数铰接转向角 Articulated steering angle°±27°
行驶参数前桥摆动角 Oscillation angle of front axle°±16°
行驶参数轮胎规格 Model of tire-17.5-25(12PR) standard
油箱容量液压油箱容量 Max. capacity of hydraulic oil tankL140
油箱容量燃油箱容量 Max. capacity of fuel tankL350
标准配置铲刀规格-12ft moldboard(12 英尺铲刀)
选装配置铲刀规格-14ft moldboard(14 英尺铲刀)
选装配置过载保护圈驱动 Overload protection circle drive-/
标准配置空调 HVAC-✓(标配)
选装配置进气预热器(-20℃) Intake preheater (meet -20℃)-✓(选装)
选装配置后置摄像头 Rear camera-✓(选装)
选装配置前推土铲 Front dozer blade-✓(选装)
选装配置五齿后松土器 Five-tooth rear ripper-✓(选装)
