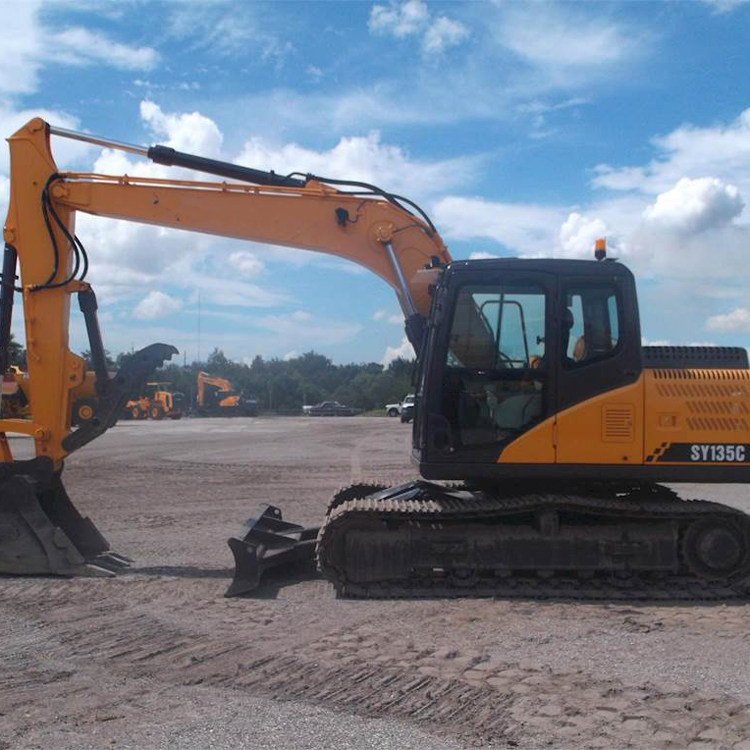

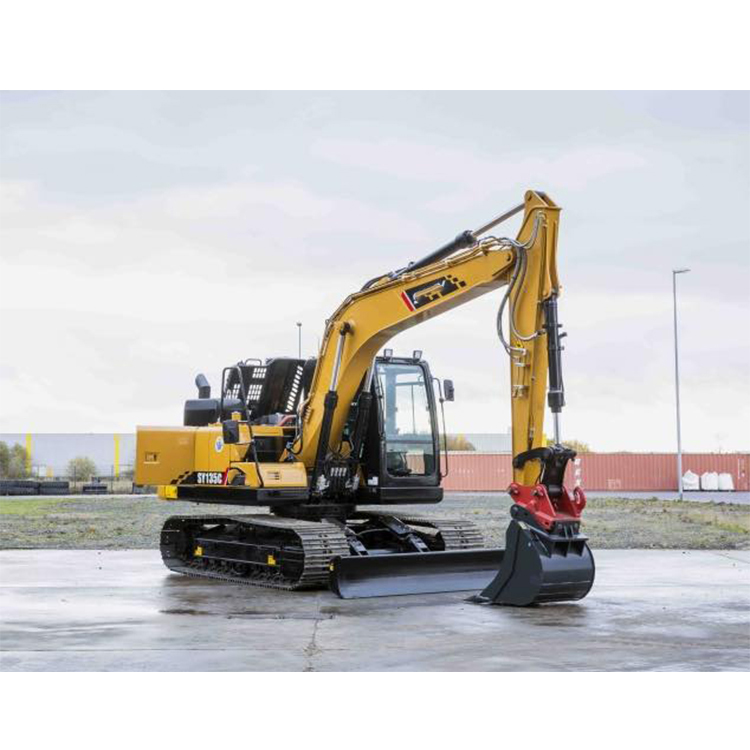

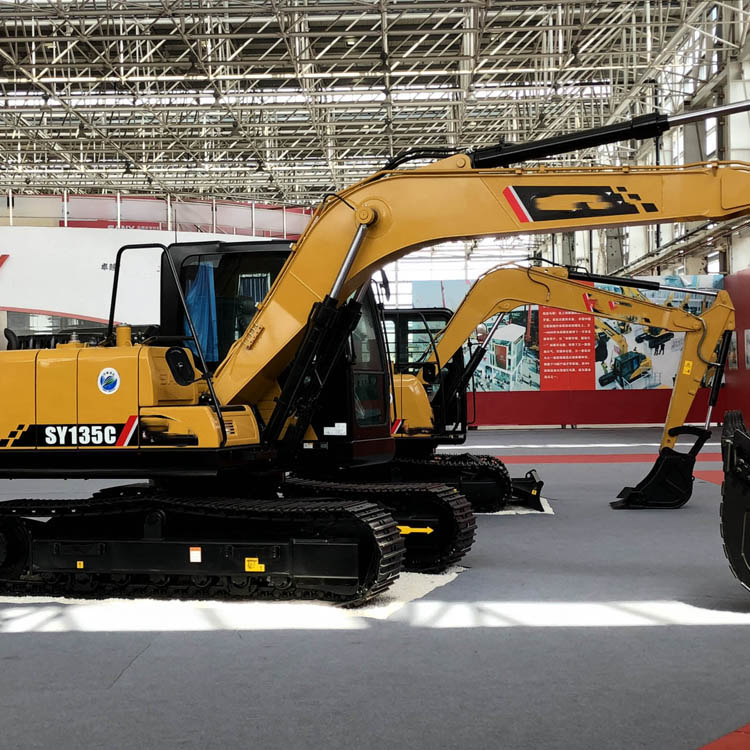

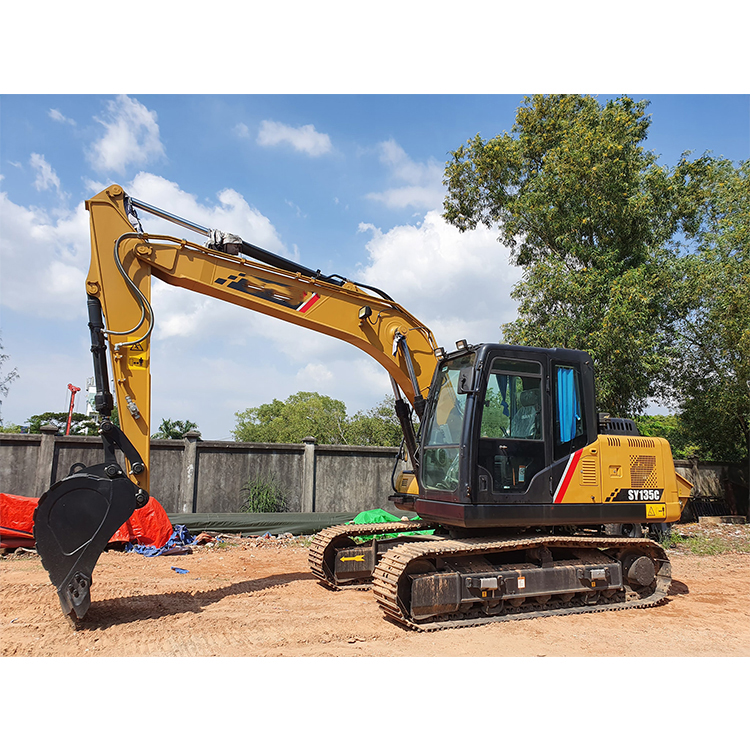

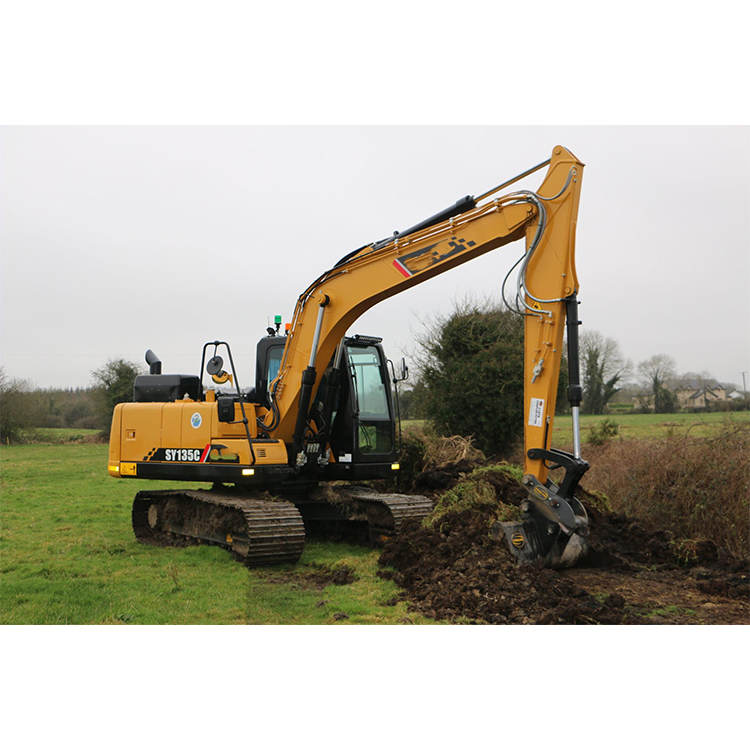

SANY SY135C Earthmoving Machinery Crawler Excavator
Model:
SY135C
View All >
Category:
Earthmoving Machinery
Product:
Crawler Excavator
Brand Name:
SANY
Dimension (mm):
7890*2490*2890mm
Operating weight (kg):
13500kg
Origin:
China
Key Attributes
Bucket Capacity:
0.6 m³
Max. Digging Height:
8685 mm
Max. Digging Depth:
5510 mm
Engine Brand:
ISUZU
Engine Power:
86kW
Digging Force:
103 kN
Ground pressure:
41.7 kPa
Gradeability:
70%
Bucket digging force:
103 kN
Arm digging force:
67.4 kN
Packaging & Shipping
Overall Dimensions (L×W×H):
7890*2490*2890mm
Overall Weight:
13500kg
Shipping Method:
By bulk cargo shipment, RO-RO vessel
Delivery Period:
45 days
Certificate:
Original Manufacturer Certificate
Origin:
China
HS Code :
8429521200
Detailed Specifications


Product Description

SY135C 13.5-Ton Excavator Built for Strong Power & Value

The SY135C combines high power, efficiency, and reliability to tackle medium-scale construction projects with ease.

1.High-Power, Fuel-Efficient Performance

With a 73kW engine and strong torque output, this excavator delivers reliable power for digging, lifting, and grading tasks, while keeping fuel consumption low.

2.Impressive Digging CapabilityThe 103kN bucket digging force handles even the toughest soil and rock conditions. It digs down to 5510mm, reaches out to 6900mm, and lifts materials up to 8665mm high.

3.Built to Last with Reinforced StructureReinforced components ensure long service life and stable performance, even under heavy working conditions.

4.Excellent Site Adaptability70% gradeability lets you work on slopes and uneven ground with confidence. The reinforced undercarriage provides reliable traction in various working conditions.

5.Easy to Maintain & Low DowntimeSimple service access points keep maintenance quick and easy, reducing downtime and keeping your projects on schedule.

Product Paramenters


 Parameter Item
Value
Operating Weight13500 kg / 13.5 ton
Engine ModelIsuzu 4JJ1
Rated Power86kW / 2200rpm
Max Torque375Nm / 1800rpm
Displacement2.999 L
Standard Bucket Capacity0.6 m³
Bucket Digging Force103 kN
Arm Digging Force67 kN
Swing Speed12 rpm
Travel Speed (Low/High)3.5 / 5.5 km/h
Gradeability70%  (35°)
Ground Specific Pressure41.7 kPa
Standard Boom Length4600 mm
Standard Stick Length2500 mm
Max Digging Height8800 mm
Max Dumping Height6600 mm
Max Digging Depth5500 mm
Max Vertical Digging Depth5085 mm
Max Digging Radius8350 mm
Minimum Tail Swing Radius2210 mm
Minimum Turning Radius2500 mm
Overall Dimension (LWH)7890*2490*2890 mm
Standard Track Shoe Width500 mm
Track Gauge1990 mm
Min Ground Clearance450 mm
Fuel Tank Capacity280 L
Hydraulic Oil Tank Capacity200 L
Emission StandardNational IV / Stage III
HS Code88429521200
