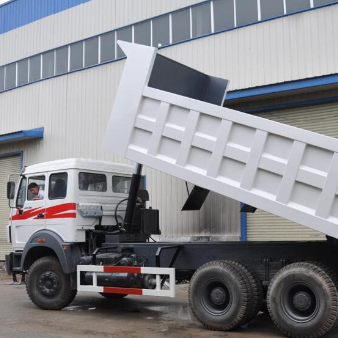

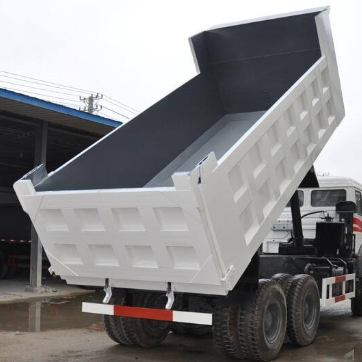

BEIBEN ND3250 375HP Truck & Special Vehicle Dump Truck
Model:
ND3250 375HP
View All >
Category:
Truck & Special Vehicle
Product:
Dump Truck
Brand Name:
BEIBEN
Dimension (mm):
8450*2500*3450mm
Operating weight (kg):
12400kg
Origin:
China
Min Order Quantity:
1 Unit
Delivery Time:
Summary
Rated Load Capacity:
31-40T
Engine Brand:
Weichai
Dump Body Volume:
20m³
Engine Power:
375HP
Emission Standard:
China VI/Euro VI
Dump Body Dimensions:
8450*2500*3450mm
Drive Type:
6x4
Max Speed:
85km/h
Power:
351 - 450hp
Supply Ability:
10,000 Set/ Sets per Month
Specifications
Packaging & Shipping
Overall Dimensions (L×W×H):
8450*2500*3450mm
Overall Weight:
12400kg
Shipping Method:
RoRo Shipment
Delivery Period:
50 days
Certificate:
CE
Origin:
China
HS Code :
8429510000
Details


Rated Load:31 - 40TDimension(mm):8450*2500*3450mm
lifting type:front liftingPlace of origin:China
Brand Name:BEIBENCertification:CE


Weight:30000Minimum Order:1
Drive Wheel:6x4Max Speed:85km/h
Curb Mass:12400kgPower:351 - 450hp


Delivery Lead Time:7 days for ready goodsMinimum Order:1
Supply Ability:10,000 Set/ Sets per MonthTotal Quantity In Stock:Over 5000
Delivery Port:Any Port In China


onditionNewHorsepower451 - 500hp
Emission StandardEURO 5Market SegementHighway transportatopn
Engine Capacity> 8L(>2.11gal)Gross Vehicle Weight10-15T
Drive Wheel8X4After-sales Service ProvidedVideo Technical Support
SteeringLeftPlace of OriginShanxi, China
SegementHeavy truckEngine Brandimported brand
Fuel TypeDieselGear Box Brandimported brand
Transmission TypeManualForward Shift Number10
Maximum Torque(Nm)≥2500NmCargo Tank Dimension7600*2300*1500mm
Cargo Tank length≥8m(≥26.25ft)Capacity (Load)> 50T
Fuel Tank Capacity300-400L(79.25-105.67gal)Passengers2
Rear Camera360°Touch ScreenYes
Tire Number12Driving type8*4 Left Hand Driving
ColorWhiteMax. horsepower460Ps
GearboxHW19710+HW50Body size (L*W*H)11830*2580*3150mm
Front axle9.5TDrive axle2*16T
Tyre specifications12.00R24.12Fuel tank400L
Fuel TypeDiesel

Product Paramenters


SPECIFICATION
Truck ModelZZ3257N3847A
Truck BrandSINOTRUK –HOWO
Driving typeLeft Hand driving
Dimension(Lx W xH)(unloaded)(mm)8545x2550x3200
Cargo body size (L*W*H)5600x2300x1500 19.32m3
Cargo body thickness(mm)bottom:8mm, side:6mm
Lift type of CarriageVentral lifting
Approaching angle/Departure angle(°)19/23
Overhang(front/rear) (mm)1500/1870
Wheel base (mm)3825+1350
Max speed(km/h)75
Curb weight(kg)12600
Loading Weight(kg)25000
Fuel tanker capacity(L)300L with locking fuel cap
ClutchSingle-plate dry clutch Φ430mm
Engine Model(Made in China)ModelWD615.47, 4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling
Horse Power, max(kw/rpm)371HP,273KW/2200
EmissionEURO II
Fuel TypeDiesel
TransmissionModelHW19710,10 forwards and 2 reverse
Brake systemService brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rear wheels
Auxiliary brakeEngine exhaust brake
Steering systemModelZF8118 hydraulic steering with power assistanceRatio:22.2-26.2
Front axleHF9 , Steering with double T-cross section beamLoading capacity:9000KG
Rear axleHC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Loading capacity: 16000kg
ColorOptional
Tire12.00R20 Steel tires, 10+1 spare
